Massive LCD / PLASMA / LED TV Wall Mount RW-05 by Ricoo

Swivel: 180° (Only TVs 80cm width)
Tilt: +/-15° stepless

———————————————————————-
Please verify before the purchase the compatibility of the wall mount (exact distance between the screws) with your TV:
Horizontal: 60mm – 680mm
Vertical: 60mm – 400mm
The Front panel is 6° turnable. For that you have to unscrew a little bit the screws in the middle of the panel!
———————————————————————-
– Dimension Total WxH: 72cm x 45cm
– Dimension wall panel WxH: 45cm x 19,5cm
– Drill holes area: up to 40cm x 15cm
– Tare weight: approx. 9,1 Kg
– Distance to wall: min. 115mm – max. 555mm
– Swivel area fully 180° only if TV is max. 80cm wide!

All diagonal indications in the product designation/description/packaging of the product are approximated indications for orientation!

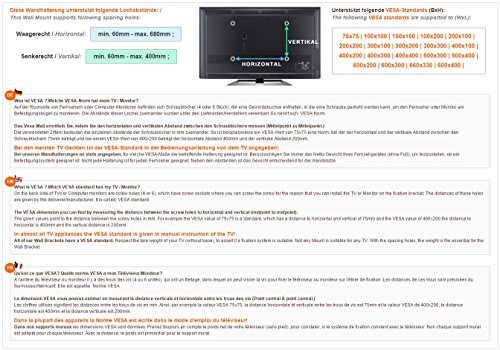

A wall mount is not to adapt to a diagonal but rather so-called to the VESA standard (distance between screws). Each wall mount has a VESA standard / distance between screws.
Only if the distance of the holes of the fixation of your TV is supported from the wall mount and the TV weighs less than the counterweight of the wall bracket, the wall mount is suitable.
