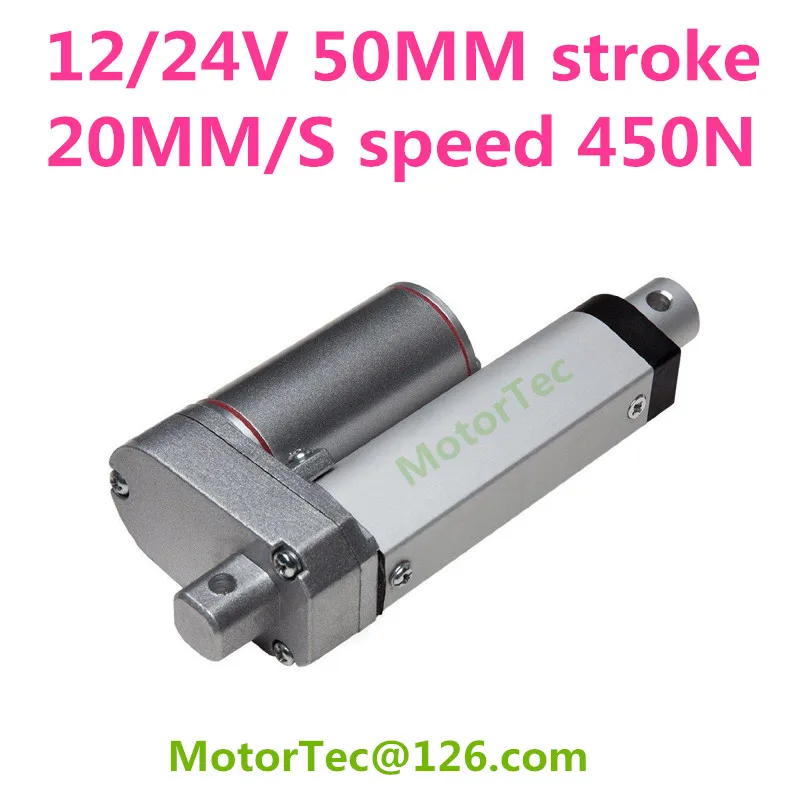

A linear actuator is an actuator that creates motion in a straight line with electricity. Linear actuators are used in electric bed or door or window, adjustable sofa, machine tools and industrial machinery.
Spec:
Type LV-1
Input 12|24VDC
(Generally speaking,I send you 12V. If you want 24V,please leave note when ordering)
Load 450N=45KG=99LBS
Speed 20mm per sec=0.8 inch per sec
Limited switch With
Duty cycle 25%
Inner tube material Aluminum Alloy
Worm Gear Metal gear
Stroke length 50mm=2 inch
Color Silver
Operation temperature -26 ~ +65 degree
IP IP65
Drawing
Lmin=105+Stroke=105+50=155mm
Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch,stop automatically.
Stroke means the movement length of linear actuator.
Lmax=Lmin+Stroke=155+50=205mm
Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch,stop automatically.
Question:
1 Can you supply customized other stroke,speed and load? Yes.
2 Can you supply customized cable? Yes
3 Can you supply control box and hand switch? Yes
4 Can I get discount if I buy big quantity? Yes
Warranty
1. If you do not receive product, we will full refund you.
2. If the product has quality problem, we will full refund you.
3. If the product is damaged by express company, we will full refund you.
Payment
We accept paypal, Escrow,Western union and bank transfer.
Shipping
1. Order will be delivered within 3-5 days.
2. Please make sure your address and phone is correct.
3. In order to save your import tax, we will declare low price in invoice.
Thanks for visiting my store.
