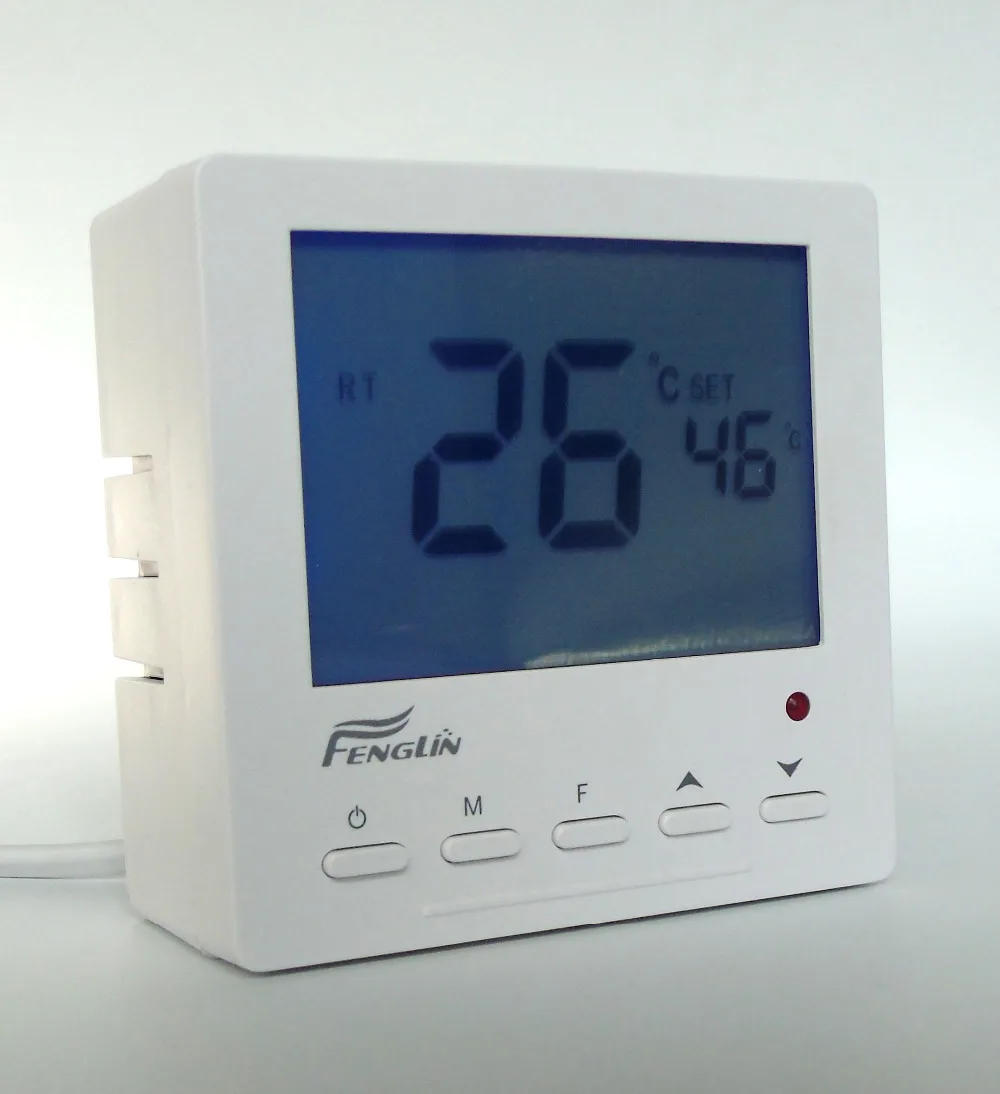

25A 5KW External installation digital floor heating thermostat for heater
D805M the thermostat is integrated design, it use CPU of microcomputer, can set up the temperature by periods. All the running status and environment datas are been showed by the LCD, it helps to guider the user. The Large current output can satisfy normal warming requirement(16A-25A) and Enhence temperature accuracy, so it will be more convenience and effective to control the temperature by a Comfortable and energy saving way. It can control high-power equipments, such as: Cable, Electrothermal film, electric radiator, wall hanging etc…
Scope of Application
D805M series digital temperature controller is suitable for the floor heating, water heating, electric heating equipment (electrothermal film, heating cable, electric heaters, resistance wire, carbon crystal plate).
Product features
1 Recommended for control of underfloor heating and electrical heating.
2. Electronic on/off control up to 5KW, 25A
3. The whole thermostat, connected directly heating body can control
4. Large Back-lit display, LED screen, easy-to-see and read
5. Infrared remote-controlled function(option)
6. Built-in interrupter
7. Display temperature recalibrates
8. Surveys, display and set room temperature
9.1-sensor: Room sensor
Technical instructions
Shell Material: ABS + PC alloy (flame retardant)
Negative Inductive Load: 220v 3A
Impedance Load: 220v 25A
Shape Size: 86 mm * 86 mm * 40 mm (External fixed)
Mounting hole is apart from the standard junction box 60 mm
Services
Available in customerization, ODM and OEM.
Sensing element | NTC | temperature setting range | 5~40ºC |
Power voltage | AC220V±15% 50/60Hz | Temperature display range | 0~60ºC |
Load Current | 3A (Inductive Load) 25A (Resistive Load) | Operation environment | 0~50ºC |
Self-Power consumption | <1W | Accuracy | ± 1ºC |
Cross-sectional area | 0.5 ~ 4mm² | Relative humidity | 90%RH |
Protect range | IP30 | Shell material | ABS + PC |
Wiring diagram
