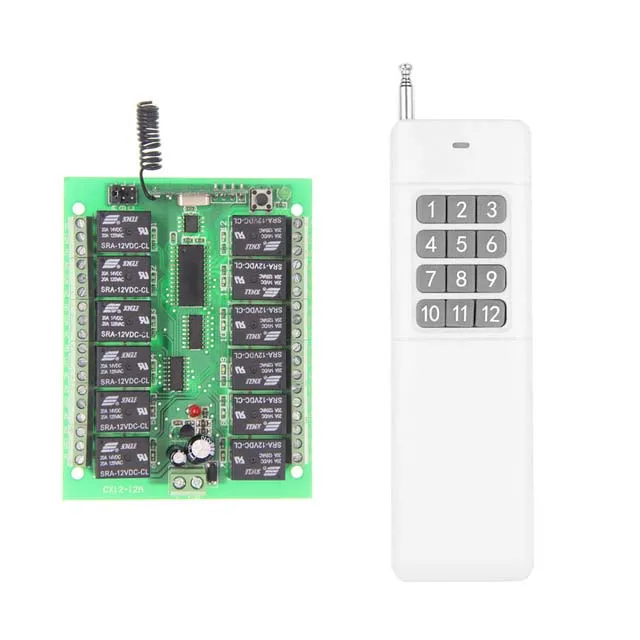

3000M Long Range DC12V 24V 12 CH 12CH RF Wireless Remote Control Switch System,315/433.92 Mhz,Transmitter + Receiver

Specifications: Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows. 1.Transmitter Channel: 12 CH Remote Control Distance:0-3000 M ( Ideal Distance without any block and signal interfere , it would rise and fall about 10%-90% with the block and signal interference.) Encode: Fixed code, soldering Frequency:315 or 433.92 Size: 150mm x 42mm x 26mm Power Supply: 9V Battery (NOT included) 2.Receiver Decode: Learning Code Control Type: Toggle, Momentary, Latched Power Supply (Operating Voltage): DC 12V / 24V Relay: 20A/125V AC, 20A/14V DC Work Voltage Range of Relay: AC 110-240V or DC 0-28V State current: ≤6 mA Sensitivity:-105 dBm Operating Temperature:-20‘C – 70’C Size:97 X 77 X 26 mm 3.Function (Original Setting is Momentary , Change it by yourself.) 1).Toggle/Self-lock :Press 1 button==>on,press the same button again==>off 2) Momentary/Jog:Press and hold==> on, release==>off 3)Latched/inter-lock:press 1 button ==>on,press other button==>off 4.Clear Code and Learn Code 1) Learn press the learning button 1 time,the learning LED turns on,then press the transmitter key to learn.the learning led flashs and turns off. means learn sucessfully. 2) Clear press the learning button for 5 seconds,the learning LED flashs and turns off, that means the code has been cleared. 4.Package Included 1 x Receiver 1 x Transmitter
