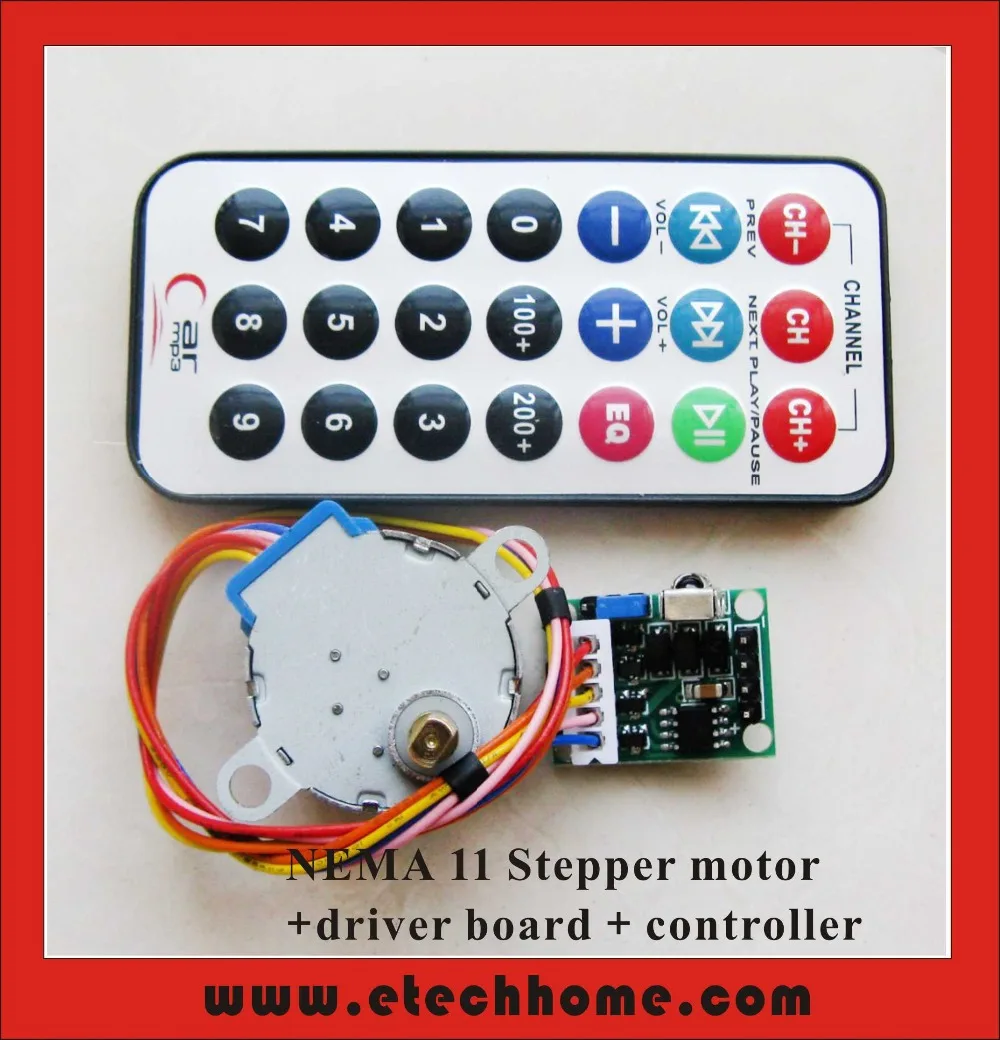

4-phase 5-wire NEMA 11 Stepper Motor+Driver Board+Remote Controller RC Multifunctional CW/CCW Running Speed Adjustable
This product without instruction, is suitable for old hand users, not for green hand.
Package including:
stepper motor
Driver&controller board
Controller
The interface for Power supply is 2.54 pin. if need, contact us to buy the USB wire to 2.54 pin interface.
This can be used directly to 5v 800mA power supply.
Note: The lower of the voltage, the slower of speed should be setted. or it may not work.
Function: Infrared remote control /motor forward and reversing/ motor start and stop/ motor speed adjustable (fastest 14 turns/min) / Cruise running back and forth /Number of cruise specify/ steps can be customised/ power data is not lost (memories function) The motor parameters: The motor diameter: 28 mm Output shaft: Double D output shaft, shaft diameter 5 mm, the narrowest place is 3 mm Motor torque: test 350 g items on the original shaft, it can easily pull up Motor voltage: 4.2 -5.1 V Step Angle : 6.25 * 1/64 The reduction ratio: 64:1 Driven board volume : L25xW18xH13 mm driver board power: 4.2 -5 Vdc Driven starting current: no less than 1000 mA The function of Driver board: * all infrared remote control more convenient operation * ultra small volume only L25xW18xH13mm very convenient place * speed adjustable: from 1 millisecond step to step 59.99 seconds (+ – symbols) * forward and reversing control (ch -, ch +) * start and stop control (ch); Start again to a stop in time; All this stop including cruise and other operation mode works * specified steps: 2 key input 6 digits set in the beginning, if the input values greater than 65535 then as 65535. Set out each time you press the button 100 + / 200 + / reversal, run a set number * number of cruise: press the number keys enter the 3 digit 6 digit “; Such as cruise three input: 300003; The largest number is 65534, more than this value will run in an infinite loop. Set after the pause operation, according to a cruise is running, then closed a cruise * automatic mode: specifies the steps and the number of cruise after set, press “>> || ” pause the beginning steps back and forth movement that is specified by automatic reverse cycle until again after “>> || ” button to stop (walk the remaining steps to stop) or number of cruise. If the lost is not open to run automatically can run twice CH button force to stop; * can be straight from the keyboard input speed values between 00001-59999 (note: 1000 is 0.5 milliseconds) * every time after the new electricity memory last set last time * every time when limit switch is connected with limit control switch conduction The mounting hole is 2mm. millisecond step 2000: 2000 ms = 1 speed The operation of controller: Ch – : motor start and reverse Ch: press 1 time – start; press 2 times – stop (running cruise also stop ) Ch + : motor start and forward running | < < : motor speed minus 1 > > | : motor speed Add 1 > | | : open cruise /close cruise – : motor speed minus 2 times + : motor speed add 2 times EQ: mode selection; Each time the mode accumulate one (0-2 cycle cumulative) 100 + : steps specified inversion 200 + : specify the steps forward
Digital key combination input:
Figure 0 beginning: direct input speed for example: 000001 speed is 077777; 1 speed is 65564; Figure 1 beginning: specify the number of steps such as: 100512 take 512 steps; 177777 is to take the 65535 step Figure 2 at the beginning of the word: Specifies that the circle number of the and 1 at the beginning of the word is co-author with quite in front of 1 prefix added 65535 number; for example 4096 circle need to turn 4 ring can be configured to input 104096 input 200004; two kinds of results is as the input in the input 3 prefix set to return the number according to the green playing bond operation Cruise Figure 3: specify the number of cruise, such as the 300002 Cruise 2 times; 355555 cruise 55555 times; 377777 for the infinite loop
Tips to some customers:
- Brazil: Please inform us the CNPJ(Company) or CPF(Private) after you placed the order.
- Argentina: Please inform us your CUIT after you placed the order.
- Russian: It’s best to have a company name, or at least your full name.
