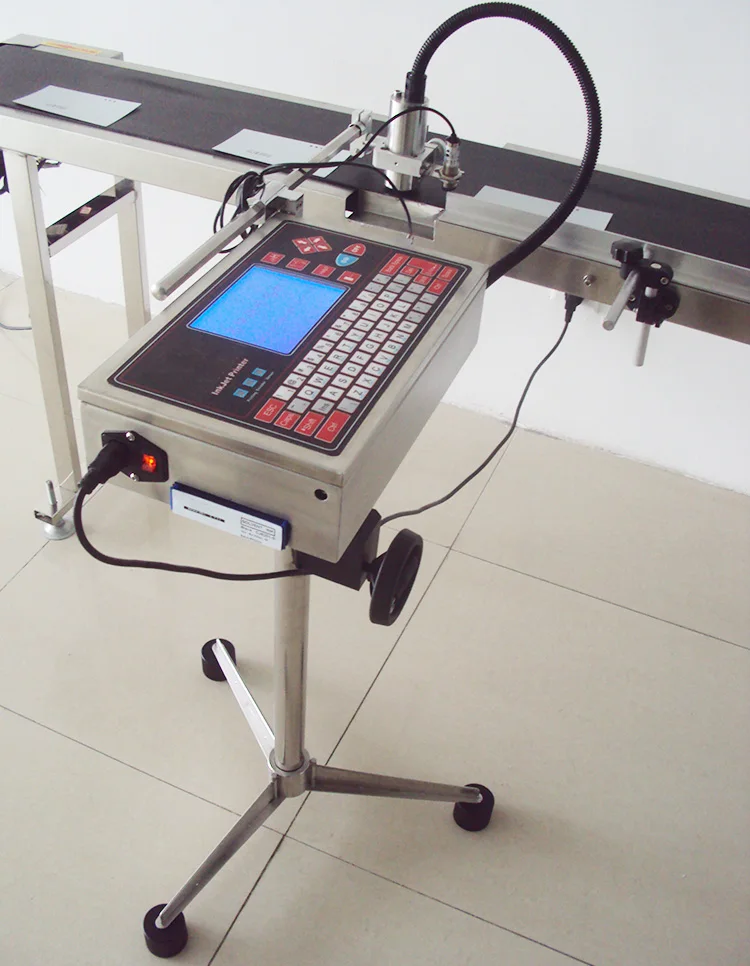

A180-F inkjet printing machine +3 extra ink cartridge( black, red, blue, white)

Features

1) This printer can be used independently without computer connection, User friendly design and easy to operation.

2) There is USB interface and can be connected with computer to transfer symbols and logo.

3) The editting interface of the mainframe can be switched from Chinese to English, or from English to Chinese at any time, which makes it to meet requirements in overseas market.

4) The 4-lines printer can print 1-15 lines of English and numbers or 1-8 lines of Chinese characters,Can print large or small characters,One printer can perform Two functions!Two in one!

5) Status display: indicator light of sensor, encoder and printing indicator lamp

6) Forced ink jet function, no blocking of spray heads during long period of no usage

7) The user can input symbols and texts of any length, which is not limited by the ratio of length & width and length requriement.

8) The mainframe is equipped with 4 fonts library ( SongTi, HeiTi, KongxinTi, Dot Matrix font). When editting, these 4 fonts can be mixed for layout at the same time. If other fonts are needed, it can be transfered via computer.

Technical Data

1,Print Resolution: 200 DPI
2,Print Fonts: High Resolution Printing Fonts
3,System Languages :English and Chinese( like cellphone)
4,Printing symbols:Can print,logos & image, date, time, batch number,brand etc(length unlimited).
5,Printing lines: no limitation, but the max height must be within 18mm
6,Printing character height:from 1mm to18mm
7,Automatic Printing:Date, Time, Lot No, Shift No, Serial No. ect
8,Message Memory:can save huge amounts of information
9,Text Length:Max. 200 characters per message
10,Serial No:1-9 variable sequential numbers.
11,Ink colors:Black, Red, White.blue
12,Printing direction :Could print at any angles .
13,Printing material: porous and non-porous materials.
14,Applicable products:can print on surface of metal, wood,plastic,aluminum,building material,pvc pipe,egg,mechatronica product etc
15,Ink Cartridge:Solvent-based or oil-based environmentally friendly ink cartridge. No need to use air source or Pump.
16,Interface:USB, DB9,DB15.
17,Voltage:110V 60Hz & 220V 60HZ
18,Operation Temperature:0℃-37℃;10% -80% Humidity
19,Status Display:Printing, encoder, indicator light of sensor.
20,Printing Area: 18mm height
21,Packaging size: 58x28x44cm ;G.W: 14KG
