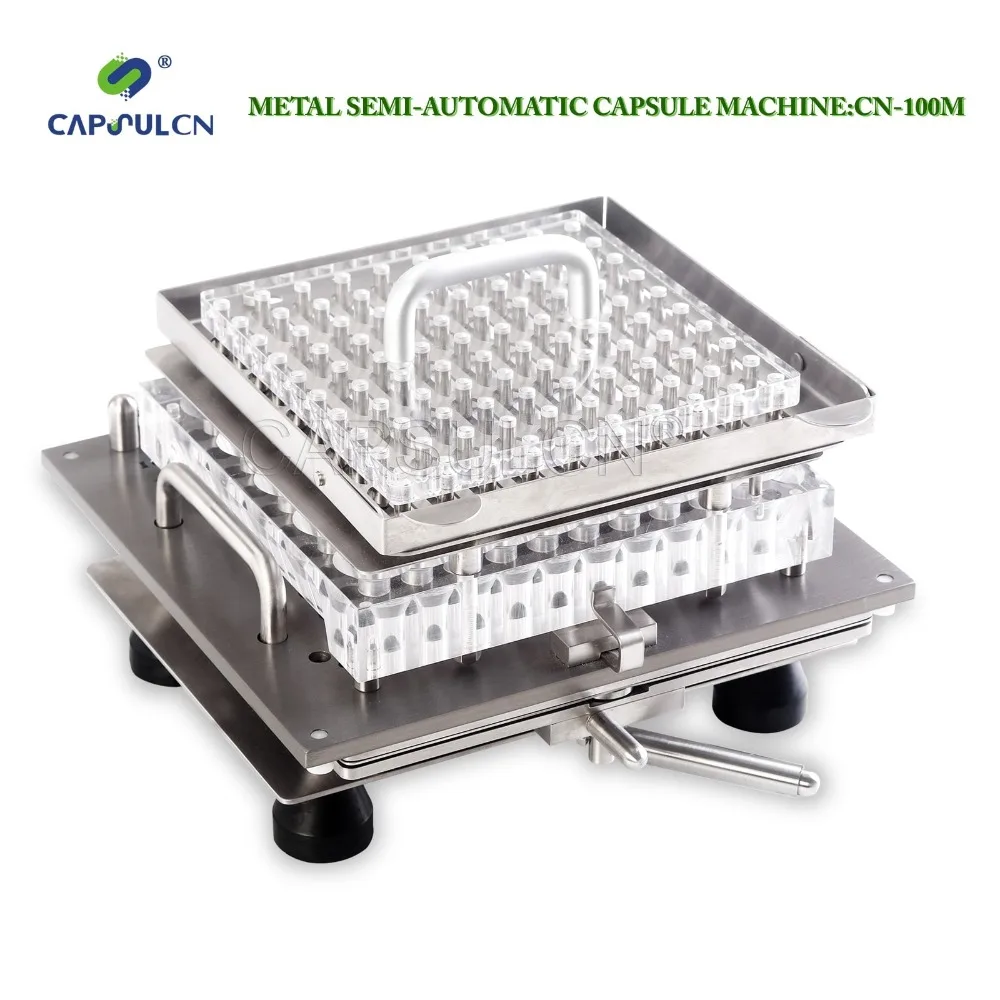

CapsulCN-100M Size 5 Stainless Steel Semi-Automatic Capsule Maker, Capsule Filling Machine

CN100M Capsule filling machine

our products are durable, permeabilized and high-quality

Buying high quality machine will less subsequent trouble

CapsulCN are your best choice

Tips:

1. We will deliver your parcels by DHL, EMS and Fedex.The shipments will take 4-10 days.

2.Please leave the message to tell us the size of capsule filling machine you need.

Many thanks.

There are many special offers to purchase CN-100M capsule filling machine:

1. The package price with free shipment.

2. The CN-100M filling machine work with the joined capsule.

Advantage of our CN-100M capsule filling machine:

1.Our most popular model, this well-constructed workhorse is easy to use. This model is perfect for the occasional user or for small to moderate quantities. Additional encapsulator sizes “000” to “5” are available.

2. Raw material is acrylic which is healthy, good transparency, durable, low weight.

3.The screws,pins and all hardware are made of stainless steel and meet the hygiene requirement GMP standards.The stainless steel can avoid reacting with powder.

4.The machine with special design, the speed of capsules collection being increased.It fills 100 capsules per cycle and can produce up to 1,500-3,000 capsules an hour.

5.The caps sheet and the body sheet with special design, high precision, can avoid the breakage of capsules when separating and joining capsules.

6.The powder guard with a enclosed design powder guard to avoid loss of powders.

7.The tamping tool is design to one-layer ,angles and pins being polished.

CAPSULE FILLING SYSTEM

Key Features

The machine system is designed for both the occasional and regular user. Occasional users like the easy-to-learn user-friendly design that results in high output quickly. The tool-free. Regular users like the patented design features that result in 50% higher output than similar systems and the long-life metal construction.

1 Up to 50% Faster than other 50-hole systems based on a patented design.

2 Exclusive 100-pin tamper, powder tray with reservoir & Video CD.

3 Partial Batch Kit (optional) fills less than 100 capsules per batch.

4 Fill weights +/- 5-7% of average when using pre- measured powder for each batch & tamping. Complies with USP, EP, JP & International Pharmacopoeias.

5 Easy cleaning & high GMP as powder contact parts are stainless steel, polycarbonate & anodized aluminum. ,

7 For higher output this machine can make 1500-2000pcs/hour.

Operation

1. Pour 50+ capsules onto Orienter and shake back and forth moving capsules into slots.

2. Lift gate and pour off excess capsules.

3. Open Filler locking plate and place the Orienter locating feet in the holes on the Filler marked “I”.

4. Push the sliding portion of the Orienter to the left to drop capsules into the Filler.

5. Remove Orienter. Capsules are in every second row of the Filler. Tip:Avoid pressing down on the Orienter Sheets to maintain proper sliding action.

6. To fill remaining rows, repeat steps 1-4 except this time align the Orienter locating feet in the holes marked “II”.

7. Close the Filler locking plate and slide clamp to secure. Squeeze the cam lever to secure capsule bodies in the Filler

8. To separate capsules, press palms down on Filler handles while lifting capsule tray up with fingers. Remove Caps Tray from Filler. Release cam lever to drop capsule bodies flush with Filler.

9. Place powder tray on Filler using locating pins and pour out pre-measured powder.

10. While holding down the Powder Tray, use the powder spreader to move powder so it falls into the capsule bodies. Push excess powder onto reservoir.

11. Use tamper to pack powder. Spread the remaining powder from reservoir into bodies. All the bodies are now filled. Remove powder tray*.

12. Place capsule tray back onto Filler. To lock capsules, push down on locking plate with thumbs while pulling up on lifting plate with fingers.
