CapsulCN, TDP-00 Mini Manual Tablet / Handheld Pill Press Machine Without Any Mold For TDP-1.5/5/6 press machine
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Sort By
| Top-rated Seller |
Most Popular from Category

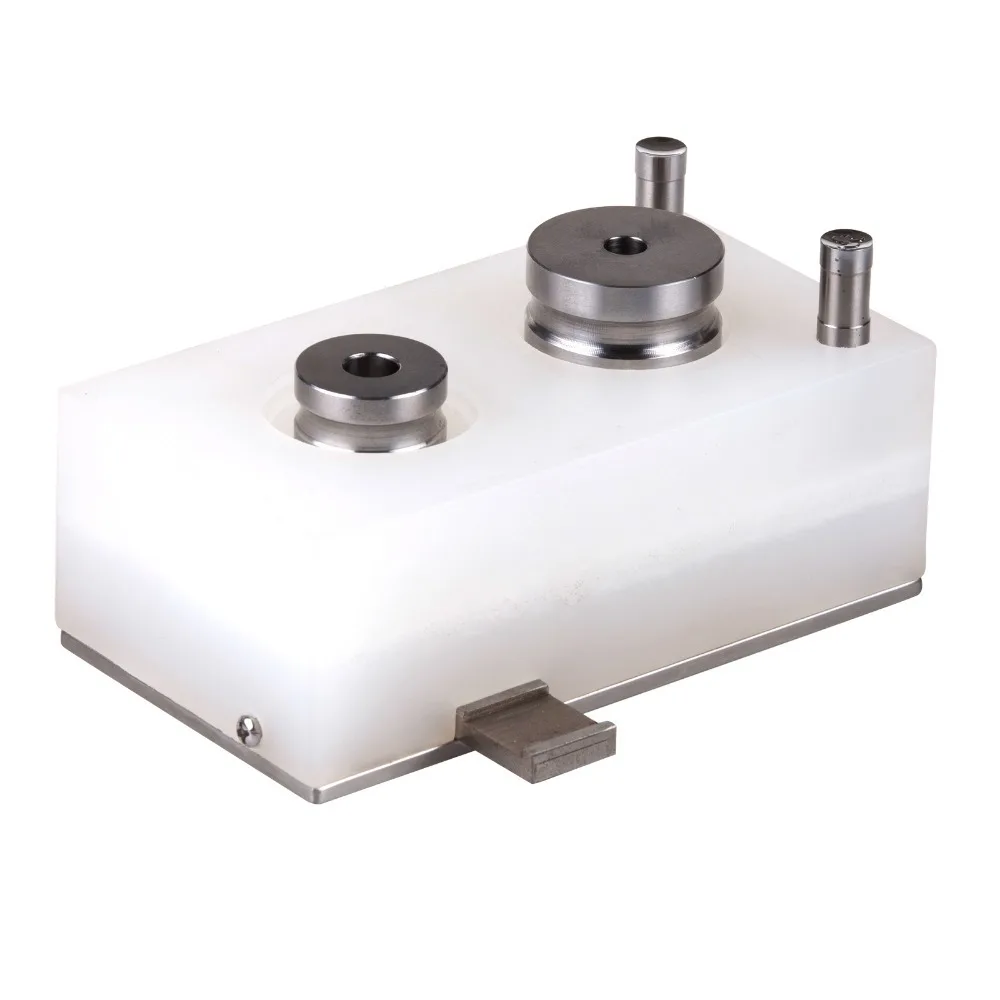

TDP-00 Mini Manual Tablet / Handheld Pill Press Machine Without Any Mold For TDP-1.5/5/6 press machine
Note: the manual tablet press is without any mold. It’s suitable for TDP-0,TDP-1.5, TDP-5, TDP-6 single punch die molds.
Feature
Max dia. of tablet: 12mm
Max thickness of tablet: 6mm
Max pressure: 1.5KN
TDP-00 is a kind of tablet press equipment used in drug stores, labs and clinics.
Fit for TDP single punch die molds (TDP-0/1.5,TDP-5,TDP-6)
Beautiful appearance, compact conformation, reasonable layout, small in volume, high use ratio and operator-friendly, this equipment can control the dosage precisely as well.
Easy to operate & carry, test material of liquidity before tablet press
How to use
- To fit the 1.5 die mold, undo the screw on the left side of the base.
- Push the steel bar completely in, and tighten the screw.
- Insert the 1.5 upper punch into the hole in the left die mold cavity.
- Fix the 1.5 middle die mold on top.
- Pour in the powder.
- Insert the lower punch into the hole in the die mold.
- Tap sharply several times with a hammer.
- Lift the middle die mold out with the lower punch, still attached
- Insert into the die mold cavity on the right.
- Tap gently with a hammer to release the tablet
- Slide the finished tablet out.
-
HOW TO CHANGE THE MOLD
1. To change the mold to 5KN or 6KN undo the screw on the left of the base.
2. Pull the steel bar out until the line on top of the bar is lined up with edge of the base.
3. Tighten the screw.
Repeat the procedure.
The CN Range can provide many different uses, Including:
1) Turning different kinds of granular raw materials into a variety of different tablets.
2) Small or Large scale production, as this press can be hand-operated as well as mechanically, you can produce single tablets for a sample before you start producing larger batches. Only one pair of punching dies can be erected on this press at a time.
3) Both filling depth of material and thickness of tablet are adjustable. By ordering from London Fashion Arts, you can ask for the specific size and shape of pill you require.
