cosmetic cream filling machine(0-100ml)

80 % of buyers enjoyed this product!
Availability: in stock
Price:  £ 810.00 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

1Notes:about free shipping: it is free to most of country ,such as Euro , America but it need some extra charges for some country such as Brazil, South Africa. for more information please write me letter

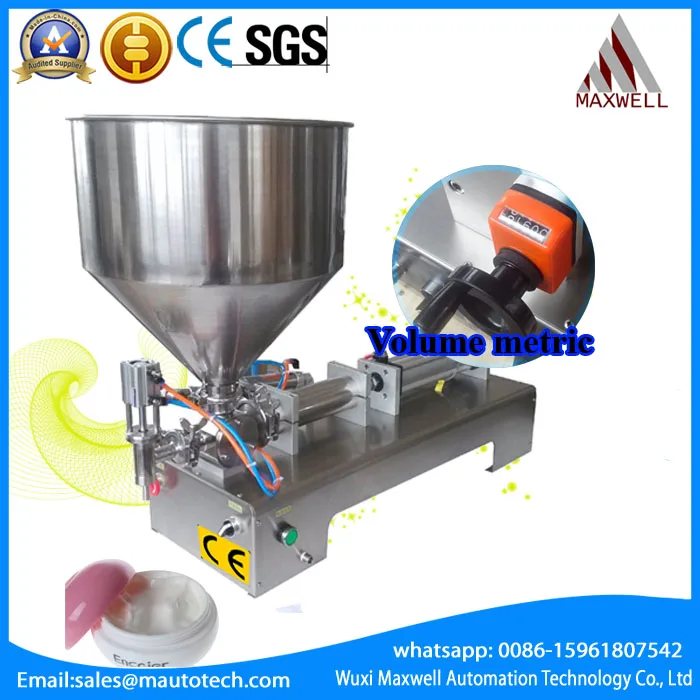

ST-P type pneumatic piston paste filling machine

Principle

Piston Fillers measure and dispense free flowing products – such as cream cosmetics, shampoo, lotion detergent. Each machine is equipped with one or more volumetric pistons.

cream filling machine

cosmetic filling machine

Each fill cycle consists of one intake stroke, and one down stroke.

In the process of intake stroke, the product is withdrawn from the container or hopper and taken into the product cylinder by piston.The down stroke commences

as soon as the product cylinder has reached its setted fill level(dose). The piston pushes the product out of the cylinder and into the container.

The amount (dose)of product to dispense is set by a simple adjustment of the length of the piston stroke (the distance covered by the piston).

The adjustment is performed by turning an small adjusting wheel located at table-top level. If the stroke is reduced, the volume of dispensed product decreases. On the other hand, lengthening the piston stroke will result more product being

dispensed. Once the set, the piston filler will dispense accurately and repeatedly.

Two repeated cycles can be performed to fill volumes that are higher than the cylinder capacity.

Application

Our Volumetric Piston Fillers are used by industries in the Food & Beverage, Cosmetics, Personal Care, Agricultural, Animal Care, Pharmaceutical, and Chemical fields.

Features:

· Approximate Speed: 10–20 bottle/min (depending on operator speed, product density, draw length, a fill speed, among others)

· All Parts in Contact with Product are Food Grade (SS 304)

· Stainless Steel Construction

· Three Way Valve System Design(Rotary valve design)

· Pneumatic Operation

· Silica gel O-ring System

· Piston Feed Speed Adjustment

· No-drip Option Included and Installed

· Extremely Accurate (+/- 1%)

· Extremely Easy to Clean and Maintain

· Sanitary Stainless Steel Quick Disconnect Fittings

· Extremely Easy to Operate

· Quick Connect/Disconnect Pneumatic Fittings.

· Adjustable Volumetric Piston System with Numeric Reference Display(option)

Control Panel:

o Semi Auto/Continuous Operation Selector Switch

o Air Pressure Gauge

o Air Intake Pressure Adjustment

o Piston Volume Adjust

o Power switch

o Power plug

o Emergency button

Working condition (customer supply)

1.power source(220V/50HZ 110V/60HZ)

2.Air source ( Max. Pressure 0.8Mpa or 116psi)
