In order to provide the best suitable machine for you , When place an order ,
please enclose the answers of following question and your email ID carefully.
1)please tell us your filling range(dose)
Such as 50ml, 100ml,300ml,500ml,1000ml,5000ml
2)please describe your product in detail. Is it liquid or paste ? What is the viscosity?
Does it have a good fluidity?
You can also make a example ,like water ,shower gel,shampoo ,toothpaste,detergent ,
cosmetic and so on.
3) provid all of inner diameter size of your vessel mouth (bottleneck)
Principle

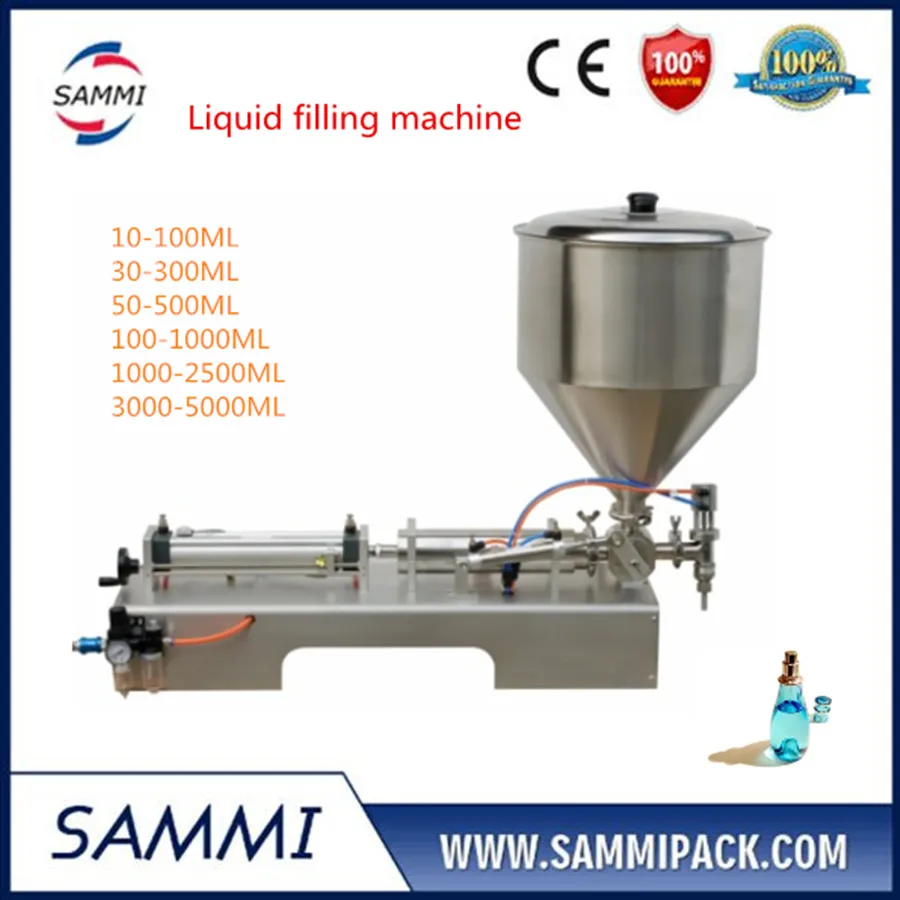

GFA series of semi-automatic filling machine piston filler. Driven by a
cylinder and piston made from materials with FIVE-way valves control the flow of
materials, and magnetic reed switch control cylinder itinerary can be regulated
filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used
pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with
the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high
accuracy.
Features: This machine adopts full pneumatic control and owns a wide application scope, simple measuring regulation, good shape and convenient cleaning, suitable for the explosion-proof unit.
Application
Suitable for medicine,daily life products, food and special industries.And it is an ideal device for adhesive fluid filling.
Technical Parameters
Machine model |
GFA-100 |
GFA-300 |
GFA-500 |
GFA-1000 |
GFA-3000 |
GFA-5000 |
Filling speed |
10-35n/min(take water for example) |
|||||
Filling range |
10-100ml |
30-300ml |
50-500ml |
100-1000ml |
300-3000ml |
500-5000ml |
Air pressure |
0.4~0.6mpa |
|||||
Filling error |
±1% |
|||||
Machine size |
806(L) × 180(W) ×690(H)mm |
880(L) ×230(W) ×665(H)mm |
880(L) × 230(W) ×665(H)mm |
1065 (L) ×230(W) ×665(H)mm |
1250(L) ×400(W) ×300(H)mm |
1390(L) ×420(W) ×380(H)6mm |
Machine weight |
30 Kg |
35Kg |
40Kg |
45Kg |
60 Kg |
80 Kg |
Machine can offer customized according to customer request
