We are FYSCOPE, and we are professional microscope supplier, we have our own factory and also have several co-operative enterprises, so we have multiple microscope part, in future, there will be more items listed in our store, we have our own technicians to check all the items before sent out, and also have professional workers to pack packing, so there is no extra worries. Welcome bid, if you have any more question please feel free to contact us first, thank you.
Welcome wholesaler!!You will get what you want!!
Features:

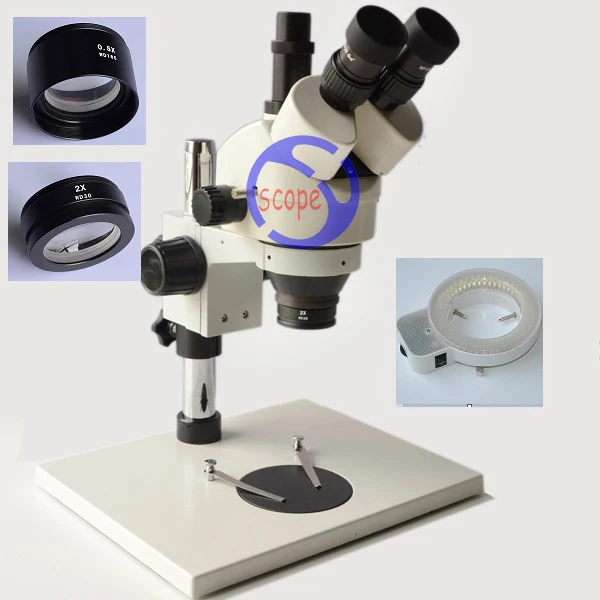

- 3.5X-90X Trinocular Zoom Microscope with Super Widefield Optics
- Trinocular Design for Attaching Photo/Video Cameras
- 45 Degree Inclined Eye Tubes
- 30mm Super Widefield 10X Eyepieces
- Crystal Clear Original True Color Images
- Erect Sharp Stereo Images over a Super Widefield of View
- High Resolution with Great Flatness and Contrast
- Accurate Alignment Ensuring Fatigue-Free Comfortable Observation
- Both Ocular Tubes with Adjustable Diopter
- Adjustable Interpupillary Distance
- Full Optical Glass Elements
- Precise Ground Glass Lenses
- Metal Pillar Stand Finished with Stain Resistant Enamel
- All Metal Mechanical Components
- Rubber Eye-guards Included
Specifications:
- Head: 45 degree inclined 360 degree swiveling Trinocular
- Eyepieces: 30mm super wide field high-eyepoint WF10X/20mm
- Auxiliary objective : SZM2.0X & SZM0.5X
- Objective: 0.35-9.0X
- Zoom Range: 26:1
- Maximum Field of View: 1-1/4″ (31.75mm)
- Minimum Field of View: 3/16″ (4.75mm)
- Diopter Adjustment: +/-5dp
- Interpupillary Distance: 2-3/16″ – 2-15/16″(55-75mm)
- Working Distance: 8″ (200mm)
- White/Black Plastic Plate: 3-3/4″ (95mm) in diameter
- Accessories: eye-guards and clip
- 144 pcs led light 0-100% can control brightness 90-240V 50hz
Packing list:
- One Trinocular Stereo Zoom Head
- One Pair of SUPER Widefield 10X Eyepieces
- One SZM2.0X WD 30mm lens
- One SZM0.5X WDD165mm lensa
- One 144pcs led light with adaptor
- One 1x adaptor
- One Focus Rack
- One Pair of Eye-Guards
- One Pair of Clips
- User’s Manual
Optical Data:
Eyepiece | Standard layout | SZM0.5X | SZM1.5X | SZM2.0X | ||||
Work distance 100mm | Work distance 165mm | Work distance 45mm | Work distance 30mm | |||||
Magnification | Field video | Magnification | View field | Magnification | View field | Magnification | View field | |
WF10X/20mm | 7.0X | 28.6mm | 3.5X | 57.1mm | 10.5X | 19mm | 14X | 14.3mm |
45X | 4.4mm | 22.5X | 8.9mm | 67.5X | 3mm | 90X | 2.2mm | |
WF15X/15mm | 10.5X | 21.1mm | 5.25X | 42.8mm | 15.75X | 14.3mm | 21X | 10.7mm |
67.5X | 3.3mm | 33.75X | 6.7mm | 101.25X | 2.2mm | 135X | 1.7mm | |
WF20X/10mm | 14.0X | 14.3mm | 7.0X | 28.6mm | 21.0X | 9.5mm | 28X | 7.1mm |
90.0X | 2.2mm | 45.0X | 4.4mm | 135.0X | 1.5mm | 180X | 1.1mm |
