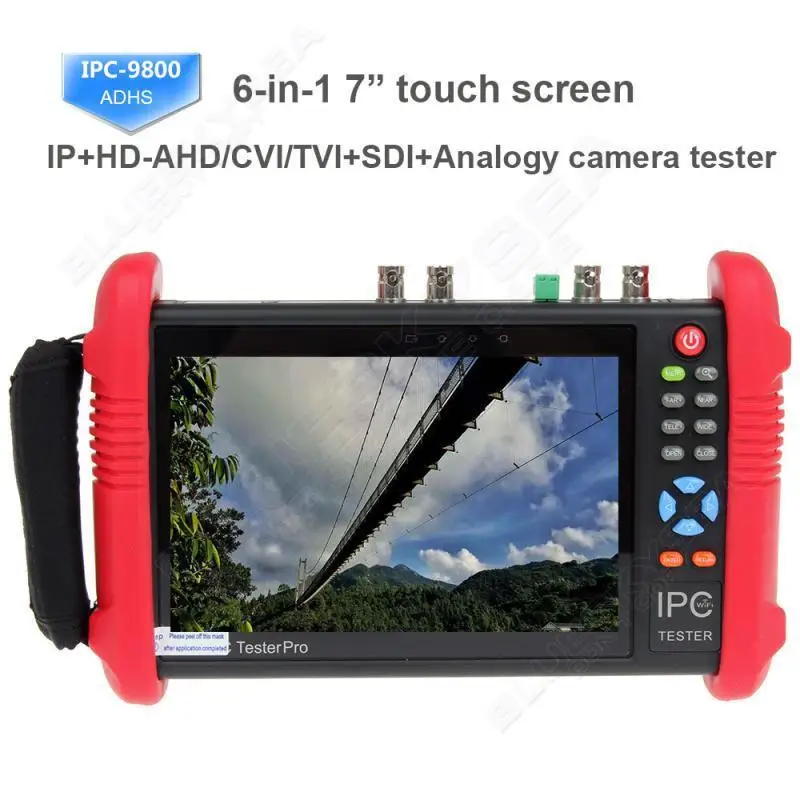

Free shipping!IPC9800ADHS 7″ Touch Screen HD 1080P TVI CVI AHD SDI CVBS IP Camera Tester 12V
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Sort By
| Top-rated Seller |
Most Popular from Category
IPC9800ADHS 7″ Touch Screen 1080P HD Analogy SDI TVI CVI AHD CVBS ONVIF IP Camera Wifi Tester POE 12V Output
This model IPC-9800ADHS,can support HD-SDI/TVI/CVI/AHD&IP camera & Analogy camera test!
Quick buying guide for optional function on IPC9800 Tester
| Model | CVBS | IP Camera | HD-AHD | HD-TVI | HD-CVI | HD-SDI |
| IPC-9800 | Yes | Yes | ||||
| IPC-9800ADH | Yes | Yes | Yes | Yes | Yes | |
| IPC-9800ADHS | Yes | Yes | Yes | Yes | Yes | Yes |
IP camera Tester IPC-9800 series:
7 inch capacitive touch screen / ONVIF /Analog camera/ WIFI /12V 2A Power output / 5V 2A power bank / DC48V PoE power supply /HDMI output/Video level meter/ IP camera viewer /PTZ control /Ping test/Link test/Cable tracer /IP discovery, Auto -search the whole network segment IP / Rapid ONVIF, Auto-login and display the camera image, Support more than 80 IP camera brands test (Hikvision, Dahua, Honeywell, Samsung etc)
7 inch Touch Screen IP camera tester is for maintenance and installation of IP camera and Analogue camera ,display analogue camera image ,PTZ control, easy to use and operate . Built in network testing tools (IP address search, PING etc), quickly check the IP camera problem. Cable scan, easy to check the network cable, BNC cable problem
New IP camera tester normal working time lasts 16 hours, built in WIFI,as well as test Wireless IP ,Analog camera ,12V 2A power output for camera ,DC48V PoE power supply,5V 2A power output(as a power bank 13000mAh),HDMI output, Audio input and output, Network bandwidth testing, OSD menu rotates in 180 angle,OSD menu can be rotated in 180 angle by manual setting. This function is very convenient for the user to upward the downside to connect the LAN cable and do the testing. Apply for: CCTV system installation and maintenance
Network cabling project installation and maintenance
Dome camera IP camera testing
Video transmission channel testing
PTZ controller IPC-9800ADHS Module Features:
1. 7 inch IPS HD full view capacitive touch screen ,1280*800 resolution
2. Capacitive touch screen ,OSD menu,
3. Touch screen and key dual-way operation
4. Built-in WIFI, wireless network camera test
5. HD-AHD/CVI/TVI camera test . snapshot ,video record and playback 6. IP discovery, do not need to know the first two digits of camera’s IP address , it can auto-scan the whole network segment IP, and auto-modify tester’s IP address NEW
7. Rapid ONVIF, search camera quickly, auto log in and display image from the camera, activate Hikvision camera.
8. Hik test tool app is design for activating and debugging Hikvision camera, can auto-identify unactivated hikvision camera, also can display image from the Hikvision camera. NEW
9. DH test tool app is design for Dahua Camera image test, support modify IP, user name and password parameters.
10. ONVIF IP camera test, support 2592*1520
11. Support FHD 1080P camera input 12. SDI camera test
SDI digital video surveillance testing, SDI input, support resolution as follows:
1280x720P 25Hz/ 30Hz/ 50Hz/ 60Hz/ 1920x1080P 25Hz/60Hz/ 1920x1080I 50Hz/ 60Hz 13. Digital camera image test and video image zoom, record, screen snapshot, Photo viewer and playback
14. Support ONVIF, combine with 80 above brand camera (Dahua,Haikang,KEDA,Samsung,Hikvision,Tiandy camera)
15. If IP camera manufacturers can offer Video Management Software that compatible with mobile phone , install the Video Management Software in the tester enable the tester to display IP camera image by IP camera viewer.
16. OSD menu rotates in 180 angle
17. Display real resolution of the IP camera images
18. Video screen snapshot ,video recording ,files named and save, easy to find
19. Support network PTZ controller (ONVIF)
20. Support 1080P HD video files and MKV/MP4 media files play
21. PTZ controller ,Photograph, Video record, Record playback
22. Video level meter, Video PEAK lever, SYNC level, COLOR BURST measurement * (Optional)
23. Optical Power Meter, it can measure the optical power value and fiber loss *(Optional)
24. Visual fault locator , to test fiber’s bending and breakage * (Optional)
25. Digital Multi-meter, Voltage, current, resistance and capacitance measuring, continuity testing (Optional)
26. Color bar generator, analog video color bar and testing image output
27. POE voltage measurement, PING test ,IP address scan, port flashing etc
28. PoE DC48V power output,Max power 24W
29. 12V /2A power output
30. 5V 2A power output as the power bank
31. HDMI output, 1920*1080P Resolution
32. Audio in /out
33. LED lamp, calculators, music players and other application tools
34. Support customers self update software
35. Lithium Ion Polymer Battery, working time lasts 16 hours Spefication:
| Model | IPC-9800ADHS [*]models optional |
| Display | 7 inch 1280*800 IPS HD full view capacitive touch screen ,more clearly image display; touch operation, easy to use . |
| Network port | 10/100M auto adapt,RJ45 |
| IP discovery | auto-scan the whole network segment camera IP |
| Rapid ONVIF | search camera quickly, auto log in and display image from the camera, activate Hikvision camera |
| Hik test tool | activate Hikvision camera,Camera image test, support modify IP, user name and password etc parameters . |
| DH test tool | Dahua Camera image test, support modify IP, user name and password etc parameters |
| SDI camera test | 1 channel SDI IN BNC Input ,Support resolution 720p 60fps / 1080p 60fps /1080i 60fps |
| TVI camera test | Support resolution 720p 25fps,30fps,50fps,60fps / 1080P 25fps,30fps , camera OSD menu control over coaxial cable |
| CVI camera test | Support resolution 720p 25fps,30fps,50fps,60fps / 1080P 25fps,30fps , camera OSD menu control over coaxial cable |
| AHD camera test | Support AHD2.0, Support resolution 1080P 25fps,30fps /720p 25fps,30fps , camera OSD menu control over coaxial cable |
| WIFI | Built in WIFI,speeds150M,display wireless camera image |
| IP camera type | ONVIF,ACTi,Dahua IPC-HFW2100P,Hikvision,DS-2CD864-E13,Samsung SNZ-5200,Tiandy TD-NC9200S2,Kodak IPC120L,Honeywell HICC-2300T,Aipu-waton IP5000-BC-13MP/IRS06-13MP,fine-Tida IPC,FSJ BY-1080Q,WEISKY IPC camera etc. Customized welcome |
| Video input/output | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) |
| Video Level Test: | Video signals measured in IRE or mV |
| Video level meter | PEAK video signal level, SYNC signal level, Color bar chroma level measurement |
| Zoom Image | Support Analog camera and IP camera image zoom /move |
| Snapshot, | Image Screen snapshot, record ,save ,view and record and play back |
| Video record and playback | |
| HDMI output | 1 channel HDMI output,support 1920*1080P |
| 12V/2Apower output | Output DC12V/2A power for camera |
| 5V power output | 5V 2A power output,as a Power bank |
| PoE power output | 48V PoE power output,Max power 24W |
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
| PTZ control | Support RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc |
| color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color ) |
| UTP Cable tester | Test UTP cable connection status and display on the screen. Read the number on the screen |
| Data monitor | Captures and analyzes the command data from controlling device,also can send hexadecimal |
| Network test | IP address scan, link test, Ping test, Quickly search the connection IP camera and other device’s IP address |
| Cable scan* (Optional) * | Search the cable by the audio signal |
| PoE test | Measurement POE switch or PSE power supply voltage and cable connection status |
| Digital Multi-meter (optional)* | AC/DC Voltage,AC/DC current,Resistance,Capacitance,Data hold,Relative measurement,Continuity testing. Testing speed: 3 times/ seconds,Data range -6600~+6600. |
| Optical power meter (Optional)* | Calibrated Wavelength(nm) :850/1300/1310/1490/1550/1625nm |
| Power range(dBm) :-70~+10dBm | |
| Visual fault locator (optional)* | Test fiber’s bending and breakage ( SM and MM fiber) |
| POWER | |
| External power supply | DC 12V 2A |
| Battery | Built-in 7.4V Lithium polymer battery ,6500mAh |
| Rechargeable | After charging 7~8 hours, normal working time 10 hours |
| Parameter | |
| Operation setting | Capacitive touch screen, OSD menu,Chinese/English |
| Auto off | 1-30 (mins) |
| General | |
| Working Temperature | -10°C—+50°C |
| Working Humidity | 30%-90% |
| Dimension/Weight | 231mm x 172mm x 52mm / 1.26Kg |
Package contents: 1x IPC9800ADHS Tester 1x 5800mAh battery(inside tester) 1x Power adapter 1x 12v Output cord 1x BNC Cable 1x RS485 Cord 1x Audio test cord 1x No 255 Cable tester 1x 8Gb card(plug into tester already) 1x Carrying bag 1x User manual
