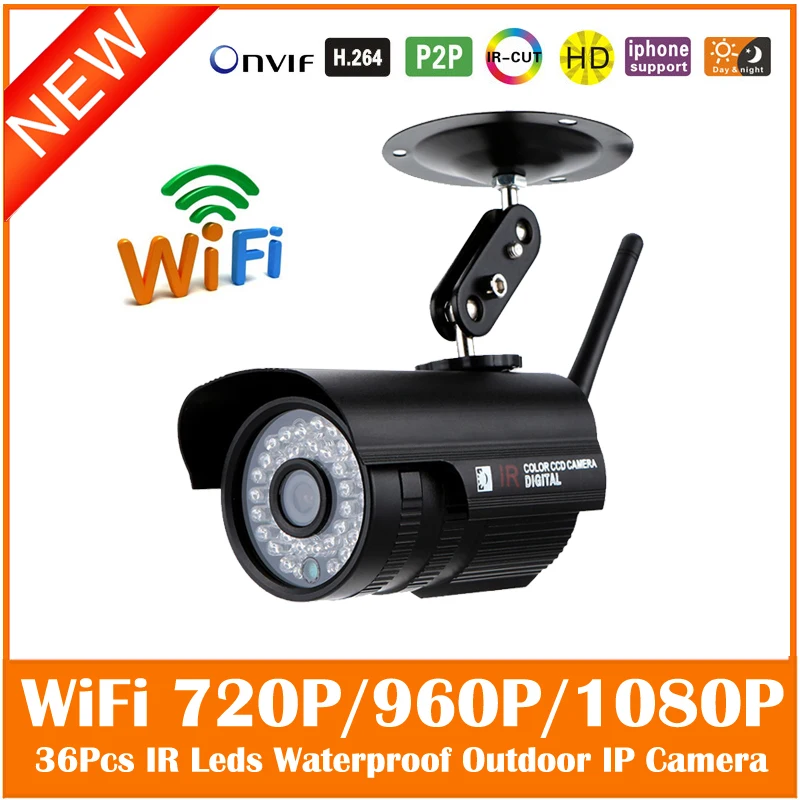

Mail FTP Motion Detect WiFi Wireless 720P/960P/1080P Bullet IP Camera Outdoor Waterproof IP65 Surveillance Network Camera.
Note:Because the title limit the number of words, only indicate the 1080P camera, when you purchase, you can according to your needs to choose three pixels 720P / 960 / 1080P.
Package Included:
1x WiFi Wireless IP Network Camera
1x Bracket
1x power adapter(If you buy the camera,we will send a DC 12V 2A power adapter for this camera as gift for you.)
Features:
Wifi wireless camera:Don’t need the cable,only power supply for the camera and the camera can work.the camera have a wifi itself,you can view the camera via itself wifi.If you need to view the camera remotely, you need to connect the camera with router’s wifi.
- High Resolution 1.0 Megapixe 1/4” OV9732 CMOS Sensor (1280*720P)
- High Resolution 1.3 Megapixe 1/3” AR1135 CMOS Sensor (1280*960P,From 2017 onwards, the replacement of the new program 3518EV200 +1135)
- High Resolution 2.0 Megapixe 1/2.7” OV2023 CMOS Sensor (1920*1080P)
- Support mobile phones Android and iPhone OS and computer remote viewing
- 1.0/1.3/2.0 megapixels 25fps(Full real time), 1-25fps adjustable
- 36pcs Infrared lights, 30m IR distance for night vision
- 3.6mm lens Default,2.8mm 6mm 8mm Optional
- IR outdoor waterproof camera, low Illumination
- P2P Motion Detection, Video lost, Network Break
- With IR-CUT, support day/night switch
- Image processing: auto exposure(AE), auto white balance(AWB), auto gain control(AGC)
- Wireless Protocols : 802.11b/g/n, 150Mbps, 50-100m,Power to the camera, with the router with a good network, you can use
- Weatherproof & Waterproof
- High Quality Black Metal body
- Net weight: 0.5 KG Approx
Detail picture:
Choose the camera lens:
Camera wire:
The camera factory default is a wire with hard reset,when you need the camera with audio,the reset key connector needs to be replaced with an audio connector as following pictures:
The camera also has a reset function in the software,so when you choose the camera with audio have no hard reset button,do not worry about returning factory settings.
Wifi module and antennas:
Specification:
Camera General | Model | SCM-SW2632-3.6MM |
Shape | Bullet | |
Mount Types | Wall Bracket | |
Power Supply | DC 12V 2A | |
IR-CUT | Yes | |
Performance | Motion detect, video lost, network break, IP conflict, storage device full or error | |
Network | Network Interface | RJ45 10/100MB Ethernet interface |
Wireless | WiFi 802.11 b/g/n | |
Protocol | Support TCP/IP HTTP/RTSP/FTP/PPPOE/DHCP/DNS/DDNS/NTP/UPnP | |
Network Transmission | P2P | |
IP Address | Dynamic IP and static IP address | |
System / Hardware | Alarm Notice | FTP Photo, E-mail alerts |
Lens | Megapixel Lens 3.6mm (Default) /6mm/8mm | |
Sensor | OV9732 / OV1135 / OV2023 CMOS | |
Processor | HiSilicon 3518EV200 / 3516C | |
Min. Illumination | Color:0.6Lux (F1.2, AGC ON),0 LUX with IR | |
Media Format | Video Compression Format | H.264 High Profile, support dual stream, AVI format; support 0.1M~6Mpbs bit rate adjustable. |
Sensor Size | Progressive Scan | |
Video Bit rate | 100Kbps~6Mbps | |
Pixels | 1.0MP/1.3MP/2.0MP | |
Image Sensor | CMOS | |
Frame Rate (FPS) | PAL:1-25fps, NTSC:1-30fps | |
Resolution | 1280*720, 1280*960, 1920*1080 | |
Night Vision | Infrared Distance | 30m |
Configuration | 36Pcs Infrared LEDs | |
Physical Environment | Environment | Outdoor, Indoor |
Protection level | IP65 / Metal body shell | |
Operate Temperature | -50~60 degree. humidity less than 90%(non-condensing) |
Packing:
NOTE:
Dear my friend,
1,The camera have no card slot,if you need the camera with card slot,please contact me,thanks.
2,If you need the camera with audio,when you order it ,you can remark your need.Camera with audio,need an external pickup is required to make a sound
If you need back-end storage devices,you can contact me ,and also you can check the following link about them:
USD 4.99/pieceUSD 5.58/pieceUSD 4.99/pieceUSD 59.47-80.67/pieceUSD 53.69/pieceUSD 59.78/pieceUSD 199.89/packUSD 329.68/pack
1,The camera wifi with 32G TF card and power adapters,if you need the cameras with TF card,you can choose.
2,The NVR for the cameras,you can choose.
3,The cameras kits,you can choose.
4,If you need other configurations,please feel free contact me,thanks.
Power adapter plugs EU/US/UK/AU:
The EU-Power Length of cable is1.2m, US/UK/AU-Power Length of cable is 1m.
If the Length can not meet your needs,you can choose the following link to buy:
FAQ: 1,Q:What’s the default ip address of the camera ? F: 192.168.1.88 Username : admin Password : admin 2,Q: Does the cameras support Motion Detect,FTP,Email alarm, RTSP and so on ? F: Yes ! All the IP Cameras we are selling support these functions . 1)Please Setup the motion detection in the Camhi APP software and Web . PC Client software:www.scp-cctv.com/softwear/pcclient.rar Username : admin Password : empty 2)To use the FTP function, you need to apply for a user name and password on the FTP server, and apply for a certain storage space at the same time, and require the user to write and create subdirectories to the storage space. 3)Email alarm:1,after completing the content, click on the application, in the test, test finished, suggesting successful test. 2, send mail server needs to support POP3 protocol, many mail servers in order to strengthen security, reduce spam, turn off the agreement, so users need to check the sending mail server when the server supports POP3, otherwise it will lead to mail success. 3, for some ssl-certified mail server, you must check the ssl option to send successfully 4)RTSP URL for VLC media Player : URL address:RTSP://IP:554/11(First bit stream) RTSP://IP:554/12(Second bit stream) RTSP://IP:554/13(Third bit stream) 3,Q: What’re the ports information of the cameras ? F : ONVIF 2.1 Port: 8080 RTSP Port :554 HTTP Port :80 4,Q:How to do there is no video image display through IE browser ? F:No plugins installed,the plug-in must be installed when accessing the IP Camera for the first time using the Internet Explore. 5,Q:When I finish the steps to add the camera to the Camhi list,why it notify “ Can’t find the Device “ even I can see the default ip address 192.168.1.88 in the menu . F:Maybe the default ip address is not in the same network segment as your router. The camera IP and your router must be in the same betwork segment.if not,you need to change the camera IP to the same to router. Now the factory IP camera has been set to automatically obtain IP,so you can use it diretly. 6,Q:How to store video? F:NVR to record the video or the camera can support SD card to record. Camera support SD card is the camera module have card slot. This camera is the default factory no card slot,only one wifi camera.If you need the camera with card slot,you can contact me. But this camera with card slot can only choose 720p or 960p,because 1080p camera module is a two-layer board,this camera shell have no enough space to installed. 7, Q:Can the camera support Audio? F: The default factory of the camera can not support audio,if you need the audio,i can arrange the audio camera for free.You need remark it when you order. The camera with audio is the camera with audio wire, the camera’s audio function through the audio wire leads,when you need the camera with audio,the hard reset button will be repalced to audio connector as pictures:
The camera with audio need an external pickup can be a sound.if you use NVR to record,the NVR need to support audio ,the stored video will have a sound. The camera connects to Pickup as following: 8, Q:What is the wireless wifi camera? F:Wireless wifi camera don’t need cable, as long as the camera power supply, in a network environment can work.Wireless networking. 9,Q:How much the value of goods will be marked on package and name? F:Usually,one camera, i remark: camera and the value is about 4dollars and two cameras is about 6 dollars. Because commercial courier needs customs, such as DHL / UPS and so on,the value will be close to the real purchase price.Of course, the customs duty is also the responsibility and obligation of each citizen. Scene application:
Real pictures:
720P Indoor
720P Outdoor
960P Outdoor
1080P Outdoor
Monitor on your mobile phones APP:
Android and IOS System User can Search “CamHi” APP in Android Market or Apple Store.Please don’t use google play.
Recent software upgrade, to the camera’s own WIFI added a password,some operation steps need to change,please check the following:
View camera on Web:
The camera needs to be in the same network segment with the router in order to be out of the image, so from November 2016 after all the factory camera, the default factory have been changed to automatically obtain IP. So when you view the camera on Web,first check the camera IP via PC Client,Camera IP is not fixed 192.168.1.88.(Recommended with IE browser)
When you press the reset button,the camera IP change fixed192.168.1.88,need to change the camera is automatically obtain IP as following on IE browser to change.
Camera PC Client:
You can download online :
www.scp-cctv.com/softwear/pcclient.rar
