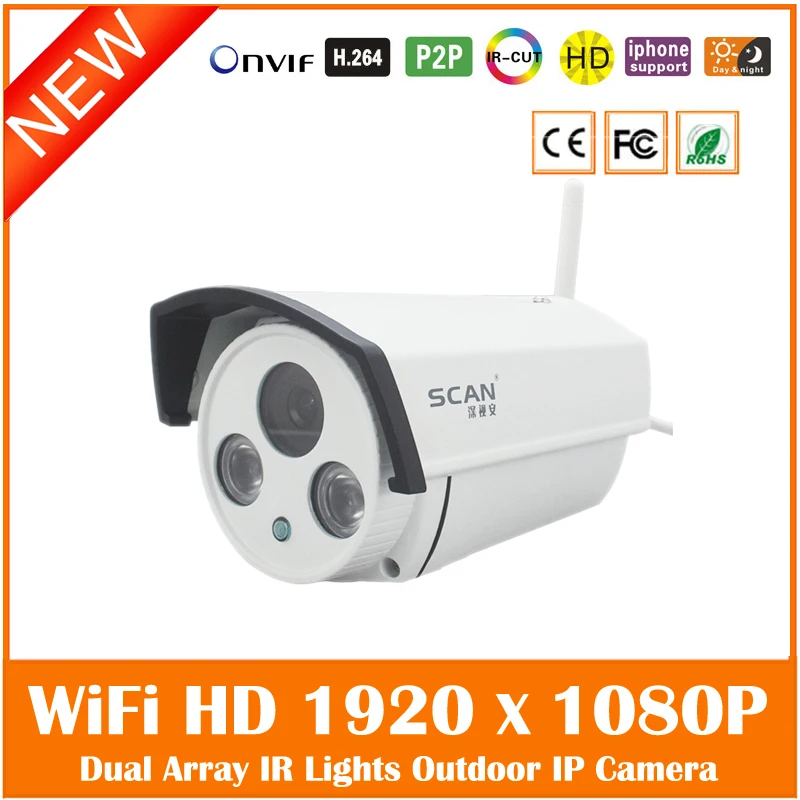

SW2404 HD 1080P WiFi Wireless IP Camera Onvif H.264 Waterproof Smart P2P Outdoor Home Network CCTV Surveillance Webcame
Features:
- High Resolution 2.0 Megapixe 1/2.7” OV2023 CMOS Sensor (1920*1080P)
- 1920x1080P Resolution 25fps Real Time
- Support IE, Google browser
- Support iphone, Android smart phone
- Weatherproof & Waterproof
- 2Pcs IR Leds With 20m IR Distance
- HD 2.0 MP 1080P IR Outdoor camera, low Illumination
- P2P Motion Detect, Video lost, Network Break
- Day & Night vision
- Net weight: 0.5 KG Approx
- Wireless Protocols : 802.11b/g/n, 150Mbps, 50-100m
- High Quality Metal body
Detailed Picture:
Specification:
Camera General | Model | SCM-SW2404FD-3.6MM |
Shape | Bullet | |
Mount Types | Wall Bracket | |
Power Supply | DC 12V 2A | |
IR-CUT | Yes | |
Performance | Motion detect, video lost, network break, IP conflict, storage device full or error | |
Network | Network Interface | RJ45 10/100MB Ethernet interface |
Wireless | WiFi 802.11 b/g/n | |
Protocol | Support TCP/IP HTTP/RTSP/FTP/PPPOE/DHCP/DNS/DDNS/NTP/UPnP | |
Network Transmission | P2P | |
IP Address | Dynamic IP and static IP address | |
System / Hardware | Alarm Notice | FTP Photo, E-mail alerts |
Lens | Megapixel Lens 3.6mm (Default) /6mm/8mm | |
Sensor | 1/2.7″ OV2023 CMOS | |
Processor | HiSilicon 3516C | |
Min. Illumination | Color:0.6Lux (F1.2, AGC ON),0 LUX with IR | |
Media Format | Video Compression Format | H.264 High Profile, support dual stream, AVI format; support 0.1M~6Mpbs bit rate adjustable. |
Sensor Size | 1/2.7 inch Progressive Scan | |
Video Bit rate | 32Kbps~6Mbps | |
Pixels | 2.0MP | |
Image Sensor | CMOS | |
Frame Rate (FPS) | PAL:1-25fps, NTSC:1-30fps | |
Resolution | Main stream 1920*1080, Sub-stream 1280*720 | |
Night Vision | Infrared Distance | 30m |
Configuration | 2Pcs Infrared LEDs | |
Physical Environment | Environment | Outdoor, Indoor |
Protection level | IP65 / Metal body shell | |
Operate Temperature | -50~60 degree. humidity less than 90%(non-condensing) |
Package Included:
1x 1920*1080P WiFi Wireless IP Network Camera
1x camera bracket
Note : Power Supply NOT included ,if you need, click below picture to purchase seperately.
The EU-Power Length of cable is1.2m, US/UK-Power Length of cable is 1m.
If the Length can not meet your needs,you can choose the following link to buy:
Packing:
FAQ:
Q:What’s the default ip address of the camera ? F: 192.168.1.88 Username : admin Password : admin Q: Does the cameras support Motion Detect,FTP,Email alarm, RTSP and so on ? F: Yes ! All the IP Cameras we are selling support these functions . 1)Please Setup the motion detection in the Camhi APP software and Web and PC Client software. PC Client software:www.scp-cctv.com/softwear/pcclient.rar Username : admin Password : empty 2)To use the FTP function, you need to apply for a user name and password on the FTP server, and apply for a certain storage space at the same time, and require the user to write and create subdirectories to the storage space. 3)Email alarm:1,after completing the content, click on the application, in the test, test finished, suggesting successful test. 2, send mail server needs to support POP3 protocol, many mail servers in order to strengthen security, reduce spam, turn off the agreement, so users need to check the sending mail server when the server supports POP3, otherwise it will lead to mail success. 3, for some ssl-certified mail server, you must check the ssl option to send successfully 4)RTSP URL for VLC media Player : URL address:RTSP://IP:554/11(First bit stream) RTSP://IP:554/12(Second bit stream) RTSP://IP:554/13(Third bit stream) F: What’re the ports information of the cameras ? Q : ONVIF 2.1 Port: 8080 RTSP Port :554 HTTP Port :80 Q:How to do there is no video image display through IE browser ? F:No plugins installed,the plug-in must be installed when accessing the IP Camera for the first time using the Internet Explore. Q:When I finish the steps to add the camera to the Camhi list,why it notify “ Can’t find the Device “ even I can see the default ip address 192.168.1.88 in the menu . F:Maybe the default ip address is not in the same network segment as your router. The camera IP and your router must be in the same betwork segment.if not,you need to change the camera IP to the same to router. Now the factory IP camera has been set to automatically obtain IP,so you can use it diretly. Q:Can the camera support Audio? F:The default factory of the camera can not support audio,if you need the audio,i can arrange the audio camera for free.You need remark it when you order. The camera with audio need an external pickup can be a sound.if you use NVR to record,the NVR need to support audio ,the stored video will have a sound. The camera connects to Pickup as following: Application scenario: Real Pictures :
Monitor on your mobile phones:
Android and IOS System User can Search “CamHi” APP in Android Market or Apple Store.
Recent software upgrade, to the camera’s own WIFI added a password,some operation steps need to change,please check the following:
Monitor on Web:
The camera needs to be in the same network segment with the router in order to be out of the image, so from November 2016 after all the factory camera, the default factory have been changed to automatically obtain IP. So when you view the camera on Web,first check the camera IP via PC Client,Camera IP is not fixed 192.168.1.88. (Recommended with IE browser)
The Usage Of PC Client ( Software included in the CD ,or can download online:
www.scp-cctv.com/softwear/pcclient.rar )
Feedback
- We are committed to your satisfaction. Your positive feedback and 5 stars rating will be highly appreciated.
- If you are not satisfied by any means, please give us an opportunity to offer you a proper solution.
Troubleshooting
- Please feel free to contact us through AliExpress message center or Order page for any problem.
Our customer service and tech support will do our best to help you out.
Shippment
- We ONLY ship to Alibaba confirmed address. Please make sure your address on file is up to date.
- Item will be shipped within 7 business days after payment confirmed.
- All products are free shipping via China Post Air Mail or HongKong Post Air Mail. The items usually take 10-21 business days to arrive, weekends and holidays not included. It may be up to 28 business days for me factors. Please contact us for surprising additional price on UPS, DHL or EMS etc.
- If you have not received your shipment within 30 days after we shipped, please contact us. We will check the shipment and reply you as soon as possible.
- Buyers are responsible for additional COD charges, VAT, Brokerage Fees, Duty, or Custom Fees and Taxes.To protect your interests, your payment will be temporarily held by Aliexpress, and will be released until you receive your order and are satisfied with it . It is the buyer’s responsibility for any custom duty fees that may be charged upon delivery. How the import duty will be charged depends on each country’s custom policies.
- If the items are detained by customs after the shipment has been left the seller’s country, the buyer is responsible for clearance of the detained items.
- If the package is refused by the buyer for the custom fee, the buyer will be responsible for the round trip shipping fee.
Payment: The Escrow service on AliExpress is powered by Alipay.com. A leading third-party online payment platform from the Alibaba Group. Escrow allows you to pay securely online without exposing your credit card details. You can also track delivery of your order and payment is only released to the supplier after you confirm you’ve received the order. Escrow is fast. safe and easy to use!
- We accept payment Aliexpress Escrow or Paypal. Please tell us if you want to pay via Paypal.
- if the shipping with DHL,Fedex,UPS, the cost can be negotiated again before orders.
- The Payment and cost do not including duties, local taxes or any other importation fees.
- Please list your special requests (color, package, value declaration,power adapter etc.)in the Remarks when you make payment.
Guarantee & Warranty:
- Item will be checked and packaged in good condiction before ship out.
- If you find any problems of our product, please contact with us first and we will help you to slove the problem.
- Item comes with 12 months warranty against any manufacturer defects. We provide replacement service for defective product.
- All sales are final, no refunds or returns on perfectly working items. Unauthorised returns will be ignored. The return policy does not cover accidental damage due to misuse, abuse or improper care.
