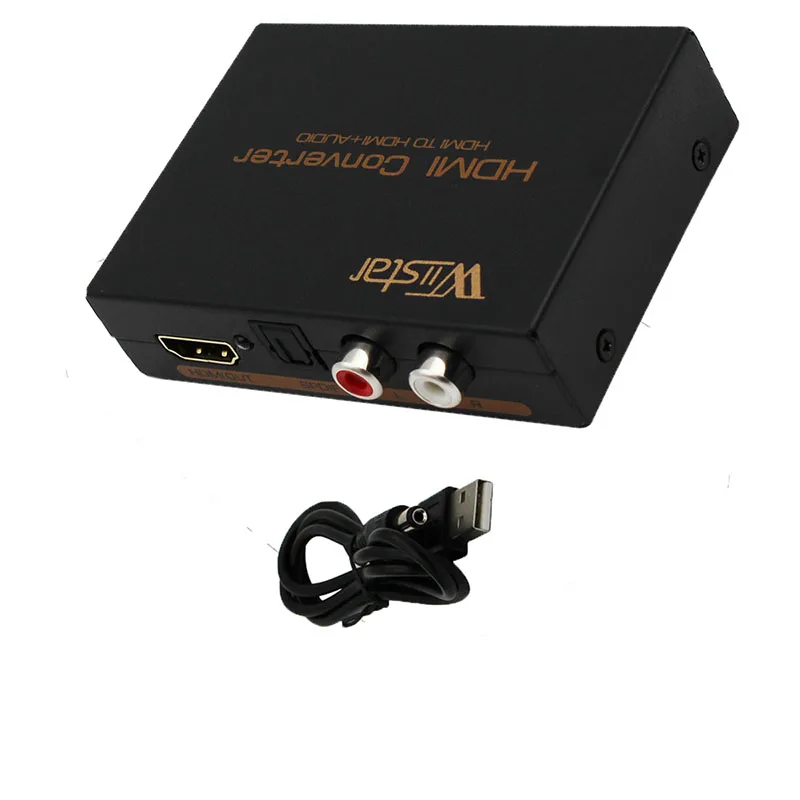

hdmi to hdmi &R/L& spdif audio with 2.1/5.1ch hdmi audio extractor free shipping
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Sort By
| Top-rated Seller |
Most Popular from Category
USD 18.99/pieceUSD 29.99/pieceUSD 13.99/pieceUSD 25.99/pieceUSD 26.99/pieceUSD 16.99/pieceUSD 24.99/pieceUSD 42.99/piece
The HDMI to HDMI converter allows the HD Source connected to single HD Display and adds extra one L+R and SPDIF audio out port. Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments. This devices can extract the digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH analog stereo output through its RCA style L/R analog output AND SPDIF output at the same time. The SPDIF output can support 5.1CH audio including Dolby Digitla 5.1CH and DTS 5.1CH; it does NOT support Dolby Digital Plus and PCM 5.1CH and beyond.
Features:
One HDMI input converted to one HDMI+ Audio (SPDIF+R/L)output
Output audio support: SPDIF+R/L analog Audio Output
Input Resolution: up to 1080P(50/60Hz)/720P/480P
LED indication: when source or sink is working, LED relative to is light.
Supports for AppleTV and various Blu-ray player
No loss of quality
Installs in minutes
Need DC5V/1A power supply
Best Quality and Compatibility in Product Category
Specification:
HDMI resolution: 1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Audio output: L/R+SPDIF
Max bandwidth 225MHz
Max baud rate 6.75Gbps
Input/Output TMDS signal 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal 5Volts p-p (TTL)
Input cable distance. ≤15m AWG26 HDMI standard cable
Output cable distance ≤20m AWG26 HDMI standard cable
Max working current 500mA
Power adapter format Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range (-15 to +55)
Operating Humidity range 5 to 90%RH (No Condensation)
Dimension (L x W x H) 84.5X61.8X21 (mm)
Product Weight: about 196g
Operating and Connecting:
To use one hdmi cable to connect the HD Source with the input HDMI port.
To connect the converter hdmi output port with the HD Display
To use one audio cable to connect the converter R/L port with the audio equipment.
To use the optical cable to connect the SPDIF port with the audio equipment.
To connect the converter with 5V DC power adaptor.
Package Includes:
1 x HDMI TO HDMI+Audio (SPDIF+L/R)
1 x usb cable DC5V
1 x User Manual
