- analog:16*1080N;(AHD Camera+TVI Camera+CVI Camera+960H/D1 at same time)
- hybrid:8*1080N(analog)+8*960P(network)(AHD Camera+TVI Camera+CVI Camera+960H/D1 +IP Camera at same time)
- Network only:8*1080P;16*960P;4*3M;4*5M

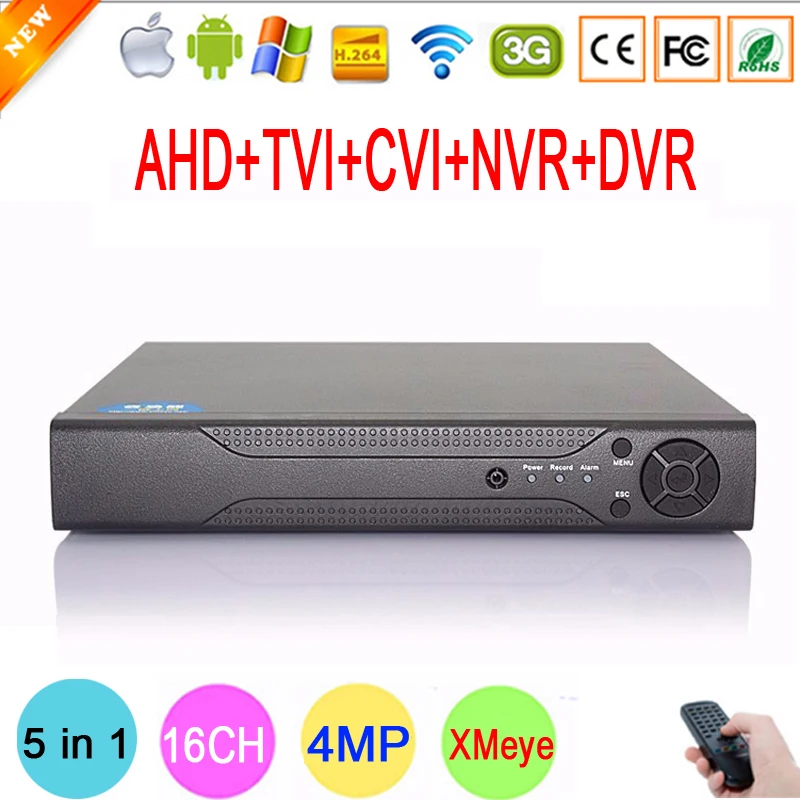

Q: What is 4MP AHD Hybrid DVR?
A: 4MP HD Coaxial DVR is highest format HD DVR; the quality is best for all HD DVR;it support 4MP,3MP,2MP,1MP HD camera(AHD,TVI,CVI,IP),960H,D1 and IP Cmera(2mp/3mp/5mp) .
Q: What is 5-in-1 function? A: 5-in-1 means that support AHD(AHD Camera),TVI(TVI Camera),CVI(CVI Camera),DVR(analog) and NVR(OnvifIP Camera).
One SATA:
Two SATA:
- Support H.264+(Quasi H.265) encoding, ultra-low bitrates, compatible with H.264 surroundings;
- Support VGA, HDMI full HD output simultaneously;
- Support ONVIF; access third party;
- Support AHD, TVI ,CVi HD video input;
- Support Web, CMS, center platform management software MYEYE, provide SDK development;
- Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
- Support various mobile monitoring (iPhone, Android);
- Remote Access, With DNS (ARSP),easy to monitor remotel
Model | TP-164MD/TP-264MD | |
System | Main processor processor | Hi3531A |
Interface | Preview | 1/4/8/9/16 |
Video | Codec | H.264+(Quasi H.265)/H.264 |
Monitor quality | VGA(1080P at most);HDMI(4K at most) | |
Encode ability | 16*4M@8fps(AHD)/ 16*3M@10fps(AHD)/16*1080P @15fps (5 in 1) / 16*720P(5 in 1) | |
Decode ability | 8*4M@8fps(AHD)/ 8*3M@10fps(AHD)/8*1080P @15fps (5 in 1) / 8*720P(5 in 1) | |
Onvif support | support | |
Multi-mode input | analog: 16*4M;
hybrid: 8*4M(analog)+8*4M(network); only Network:8*3M;4*5M |
|
Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) | |
Audio | Audio compression | G.711A |
Intercom | support | |
Record & playback | Record mode | manual>alarm>motion detection>timing |
Local Playback | 8ch(local input mode) | |
Search mode | Search by time, calendar, event, channel | |
Storage & backup | Video storage | HDD, network |
Backup mode | Network, USBhard disk, USB burner, SATA burner | |
External Interface | Video output | 1ch VGA, 1ch HDMI |
Loop Vout | N/A | |
Audio I/O | 2(Can be extended to 6ch)/1 | |
Alarm I/O | 0(Can be extended to 4ch)/0(Can be extended to 1ch) | |
Network interface | RJ45 10M/100M self-adaption | |
PTZ control | 1*RS485, Support kinds of PTZ protocols | |
USB | 2* USB 2.0 ports | |
HDD | 1*SATA ports (Max 8TB/per)/2*SATA ports (Max 8TB/per) | |
Wireless | 3G, WIFI (extend via USB) | |
General | Power supply | 12V/3A |
Power Consumption | <15W (without HDD) | |
Working environment | Temperature:0 degree – +55 degree Humidity:10%-90%,Atm:86kpa-106kpa | |
Dimension(mother board) | 235mm*90mm | |
Weight(mother board) | 279g |
