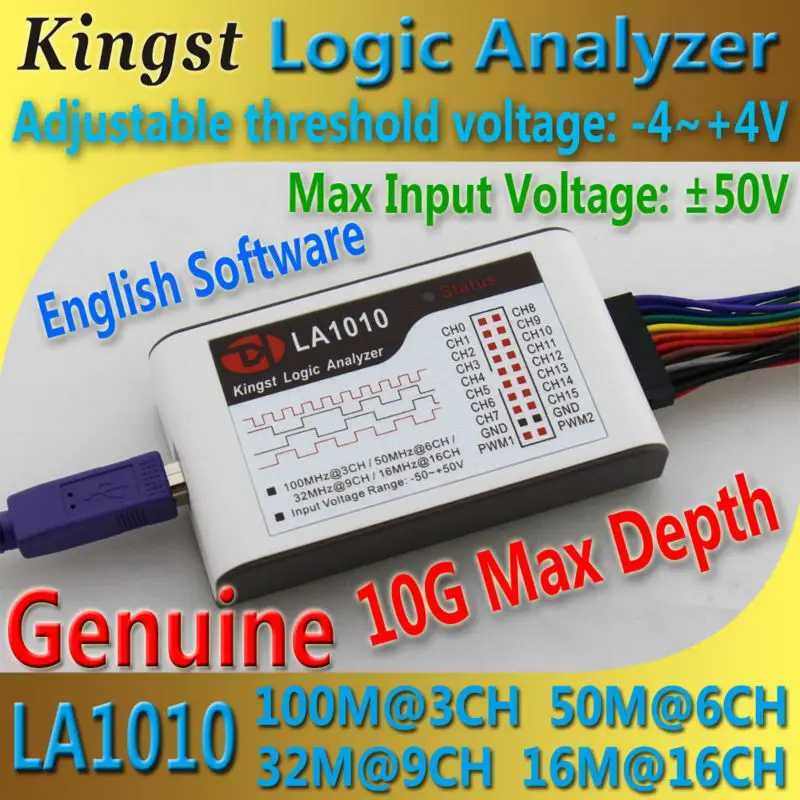

![Kingst LA1010 USB Logic Analyzer 100M max sample rate 16Channels 10B samples MCU ARM FPGA debug](https://ae01.alicdn.com/kf/HTB1R3YZOFXXXXa5aFXXq6xXFXXXK/Kingst-LA1010-USB-Logic-Analyzer-100M-max-sample-rate-16Channels-10B-samples-MCU-ARM-FPGA-debug.jpg)
![Kingst LA1010 USB Logic Analyzer 100M max sample rate 16Channels 10B samples MCU ARM FPGA debug](https://ae01.alicdn.com/kf/HTB1R3YZOFXXXXa5aFXXq6xXFXXXK/Kingst-LA1010-USB-Logic-Analyzer-100M-max-sample-rate-16Channels-10B-samples-MCU-ARM-FPGA-debug.jpg_220x220.jpg)
USD 40.00/pieceUSD 110.00/pieceUSD 198.00/piece
LA1010 is a logic analyzer product with high cost performance. It has 16 input channels and the sample rate is up to 100MHz. Along with the PC software KingstVIS, 16 channels of digital signal could be sampled at the same time, and then they could be converted to digital waveform and displayed on the PC screen. The signal could be analyzed with many standard protocols, to get more straightforward communication data. It helps a lot in testing and analyzing digital system(MCU/ARM/FPGA, etc.), developing and debugging several communication programs, or monitoring and recording some digital signals for a long time. Features ·Portable and lightweight ·Max sampling rate: 100M@3channels, 50M@6channels, 32M@9channels, 16M@16channels ·Large sampling depth and support compression ·The built-in PWM generator ·Compatible USB2.0/3.0 interface ·Powerful software and easy to use ·Support online upgrade automatically Specifications ·Input channels number: 16 ·Max sampling rate: 100M ·Measurement bandwidth: 20M ·Min pulse width can be captured: 20ns ·Max sampling depth: 10G/channel ·Input voltage range: -50V ~ +50V ·Input impedance: 220KΩ, 12pF ·Adjustable threshold voltage: -4V ~ +4V, step: 0.01V ·PWM channels number: 2 ·PWM frequency range: 0.1 ~ 10MHz ·PWM frequency adjust step: 10ns ·PWM pulse width adjust step: 10ns ·PWM output voltage: +3.3V ·PWM output impedance: 50Ω ·Standby current: 100mA ·Max operating current: 150mA ·Dimensions: 95mm * 55mm * 23mm ·Supported OS: Windows XP, Vista, Windows 7/8/10(32/64bit) ·Supported standard protocols: UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, UNI/O, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, etc…
