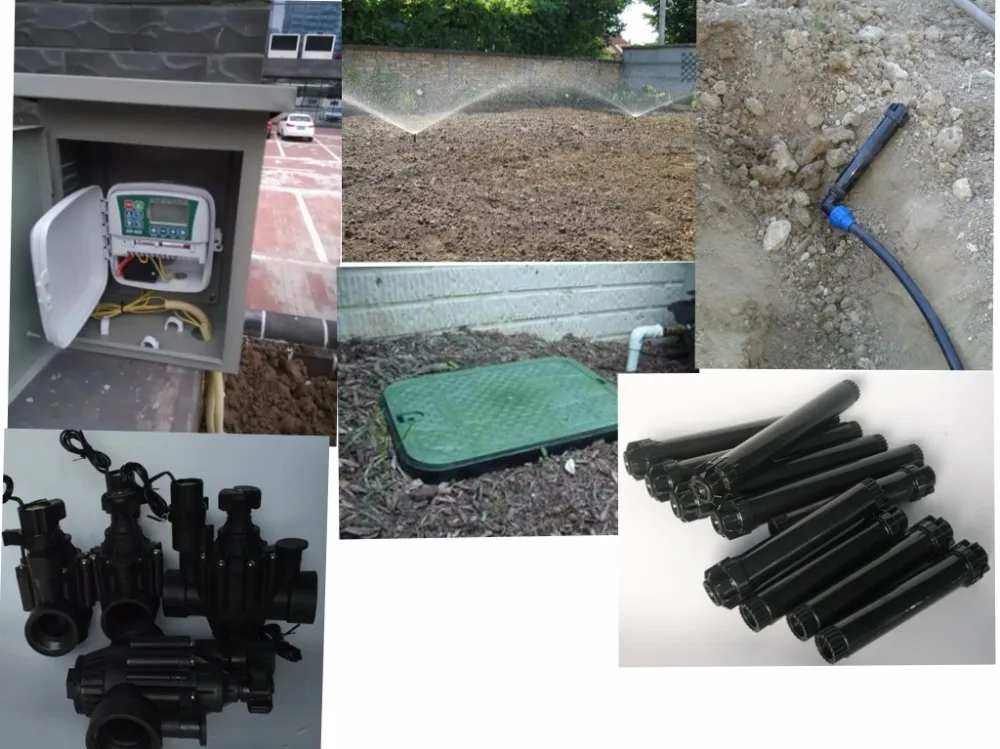

Landscape lawn irrigation system kit

Landscape lawn irrigation system kit We are specialized in the production of irrigation valve manufacturer RZX4-ESP-RZX Series 4-Station Outdoor Controller

The popular Rain Bird ESP Series of sprinkler controllers has been expanded to provide a contractor

grade irrigation controller for residential applications.

The ESP-RZX provides flexible scheduling features that make the controller ideal for a wide variety

of applications including residential irrigation systems.

The ESP-RZX Controller was designed with ease of use in mind. Zone-based scheduling allows every

valve to be scheduled independently.. The large LCD display shows all of the programming for each

zone at the same time. Simple graphic based user interface is easy to understand and presents

every controller feature at your fingertips.

Simply pick a zone, set the run time, start times and watering days, all from the same screen!

With zone-based scheduling, the ESP-RZX allows your irrigation system to be tuned to the individual

needs of each zone, without the hassle of having to deal with multiple “programs”

Zones/Stations 4 Indoor/Outdoor Indoor/Outdoor Controller Type Fixed Station Dimensions Width: 7.92 in Height: 7.83 in Depth: 1.54 in Features Battery Backup, Battery-programmable, Manual Watering, Master Valve/Pump Start, Non-volatile Memory, Rain Delay, Seasonal Adjust, Zone-based Programming Programs 1 Program Day Cycles Custom days of the Week, Odd days, Even days, Cyclical (water every x days) Start Times per Zone/Program 6 Electrical Specifications Input required: 220 VAC ± 10%, 60Hz International models; 230 VAC ± 10%, 50Hz Output: 24 VAC 650mA Power back-up: 2 x AAA batteries maintain time and date while nonvolatile memory maintains the programming Certifications UL, cUL, CE, C-Tick, FCC Part 15, Industry Canada ICES-03, IRAM S-Mark 11/2 inch Sprinkler Valve with Flow Control X 4 PCS Globe and angle configuration for flexibility in design and installation. Rugged PVC and glass-filled nylon construction for reliable operation. Normally closed, forward flow design. Filtered pilot flow to resist debris and clogging of solenoid ports. Slow closing to prevent water hammer and subsequent system damage. Manual internal bleed operates the valve without allowing water into the valve box. Allows pressure regulator to be adjusted without turning the valve on at the controller. One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service. Non-rising flow control handle adjusts water flow as needed. Accommodates optional, ensure optimum sprinkler performance. Accepts latching solenoid for use Z&W battery-operated controllers. Pop-up sprinkler ACC04 X 10 PCS Model: ACC04 Specifications 2016 Hot Sale Modern Irrigation Pop Up Sprinkler

1.It is a cabinet useful sprayer in irrigation system
2.Easy adjust angle

1. Model no.: ACC04

2. Item size: Φ 58x150mm

3. Nozzle: 4AN,8AN,10AN,12AN,15AN,17AN

4. Inlet size: 1/2″female NPT

5. Exposed diameter: 5.7cm

1. Work pressure: 1-2.5bar ,2.1bar is the best pressure for working

2. Flow rate: 0.04-1.22m ³/h

3. Pop up height: 5.7cm(4″)
