Features:

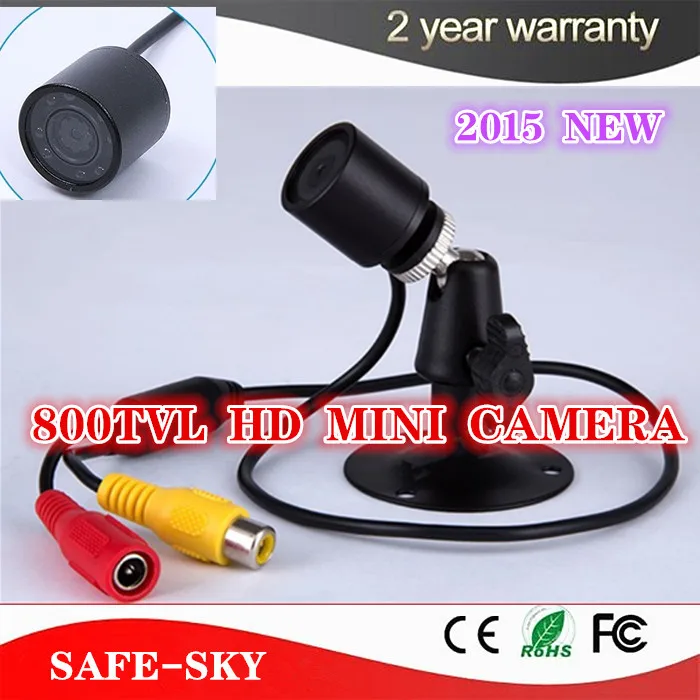

1/4″ Color CMOS IR Surveillance Camera
800 TV Lines, Horizontal
Lens: 3.6MM ( 6MM Optional )
Auto Iris
Signal: PAL / NTSC
Night Vision Min. Light: 0 Lux ( IR ON )
IR Distance:10m
Video Connector: BNC
Power Connector: RCA 12V DC
Wall or Ceiling Mounting
Power: 12V DC 150 mA
Color: Black Default White Optional
Specification:
Model |
C141213-C03 |
Image Sensor |
1/4″CMOS Color Sensor |
Effective Pixels |
PAL /NTSC |
Lens Mount |
3.6mm |
Scanning System |
2:1 Interlace |
Infrared Irradiation Distance |
24 Infrared LEDs- Visible up to 20meters |
Minimum Illumination |
0 Lux (IR On) |
Horizontal Resolution |
800 TV-Lines |
Synchronization System |
Internal Synchronization |
S/N Ratio |
>52dB |
Gamma |
0.45 |
Auto Gain Control |
Built in |
Vandalproof |
No |
Operation Temperature |
0F ~ 120 F |
Power |
12V DC |
Back Light Compensation |
Auto |
Video Out |
1.0p-p 75O BNC |
Auto Iris |
Video / DC |
House |
ABS Plastic |
Weight |
0.17Kg Approx |
Packaging included:
1 X 800TVL Bullet Camera
Trouble and Solution:
1. No Picture after providing power
May be the power supply voltage abnormity, please check the power supply voltage and pole whether exactitude.
Please check all the conecting cable and monitors whether be connected correctly or not.
2. The picture level direction have flowing interference ripples
May be caused by the power supply AC ripples, it need filter the wave of the power supply.
Check the monitor and peripheral equipments used.
3. The picture background color changes continuously
The fluorescent lamp\’s electromagnetic field cause color roll. This is proper phenomenon of the cameras.
Reduce the fluorescent lamp numbers or increase the distance between the camera and the fluorescent lamps can
improve it.
Use Power supply external sync. Camera can solve it.
4.The picture smear too mass
The power supply\’s voltage unstable
Connecting cables not connect correctly or have high impedance.
1 X 800TVL Bullet Camera
Trouble and Solution:
1. No Picture after providing power
May be the power supply voltage abnormity, please check the power supply voltage and pole whether exactitude.
Please check all the conecting cable and monitors whether be connected correctly or not.
2. The picture level direction have flowing interference ripples
May be caused by the power supply AC ripples, it need filter the wave of the power supply.
Check the monitor and peripheral equipments used.
3. The picture background color changes continuously
The fluorescent lamp\’s electromagnetic field cause color roll. This is proper phenomenon of the cameras.
Reduce the fluorescent lamp numbers or increase the distance between the camera and the fluorescent lamps can
improve it.
Use Power supply external sync. Camera can solve it.
4.The picture smear too mass
The power supply\’s voltage unstable
Connecting cables not connect correctly or have high impedance.
