Netzsh / Netzsh platinum crucible /platinum crucible / platinum sample disk/made in china

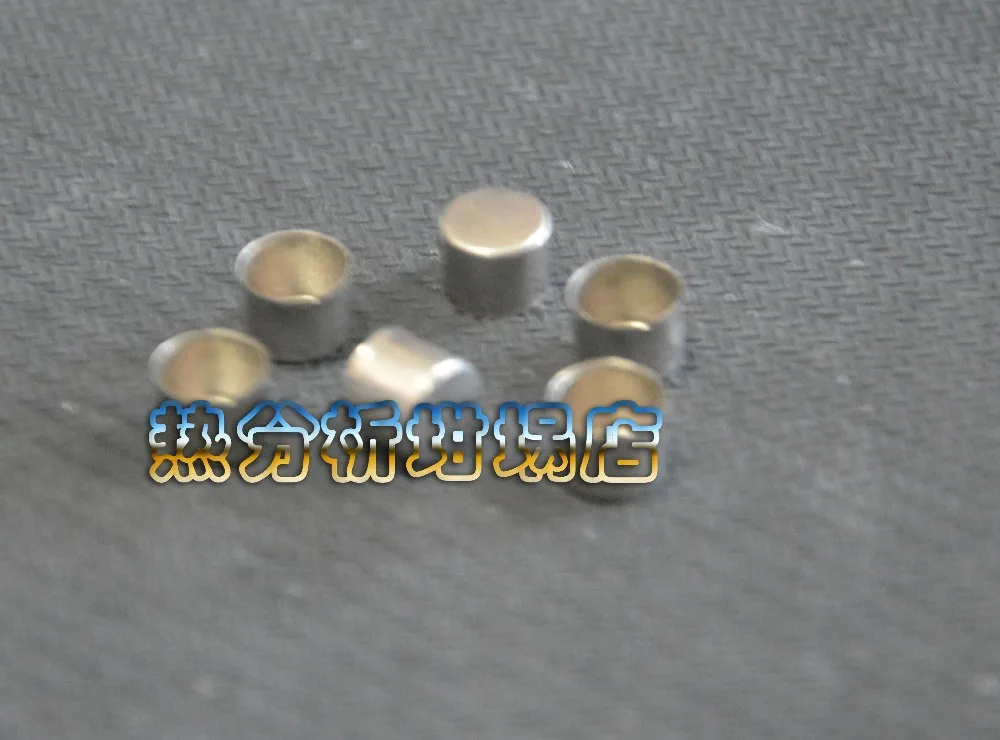

Product Description： Netzsh TGA/DSC platinum crucible(origin: China) ,Material: 99.99%platinum,Used temperature range: -150 ~ 1600℃，（Price:100USD/set,Packing:1set/1pcs）,Size:D6.7*H4mm.Not include cover. ​ Thermal analysis sample tray / crucible trial temperature profile: In order to ensure the high efficiency of heat exchange between the sample and the sensor, please use high-quality, suitable temperature range of the sample disc / crucible experiment, so as to achieve the best effect. 1 stainless steel plate / applicable temperature range at room temperature to 350 DEG C for crucible 2 samples of aluminum plate / crucible suitable temperature range at room temperature to 600 DEG C 3 copper sample tray / crucible applicable temperature range from room temperature to 1200 degrees C 4 platinum sample tray / crucible suitable temperature range from room temperature to 1500 degrees C 5 samples of alumina plate / crucible can be used up to 1800 degrees Celsius Aluminum crucible, copper crucible, platinum crucible: 1 aluminum sample tray and sample cover: suitable for non volatile solid samples, such as polymer and drug, usually used for polymer, thermoplastic and thermosetting polymer melting, crystallization and glass transition research; sample dish bayonet, but did not seal. 2 in order to avoid the sample plate / crucible and sample reaction can be used as sample plate / inert crucible, Rh alloy sample plate / crucible. 3 copper or rhodium / crucible can play a sample plate catalyst effect, also used for the analysis of most materials TGA. The scope of application of 4 high quality sample plate / crucible can help expand the DSC sample, the use of large volumes of disk / crucible into more samples can be used for the determination of thermal effect of weak, want to get better resolution can use light, good thermal conductivity of the sample plate / crucible. Alumina crucible introduction: Alumina crucible made of high purity aluminum oxide powder as raw material, combined with modern advanced sintering process, alumina zirconia ceramic crucible specializing in the production of small thermal analysis, to ensure that the product has the following four characteristics in use, good to meet the needs of all types of thermal analysis experiment. 1 high thermal conductivity: the heat transfer between the sample and crucible is fast, to ensure that there is a very small temperature difference between the two, uniform temperature distribution. 2 structure stable performance: compact forming process, high temperature sintering high purity powder with precision control, micro crystal homogeneous phase structure, to ensure that in the process of using a peak, and analysis of samples less prone to physical, chemical reaction. 3 ultra high temperature stability using a wide range of temperature, the maximum operating temperature can reach 1800 degrees. 4 high reuse rate: washing or hydrochloric acid washing of 10%, drying, can be repeatedly used, does not affect the experimental results.

• Art.No.	Model	Category	Size Φmm	unit 100PC/set
  JYL0010	American TA Q20	Aluminum	Φ5.4*2.6mm	set
  JYL0011		Aluminum	Φ5.4*2mm	set
  JYL0012	American TA Q10	Aluminum	Φ6.65*1.7mm	set
  JYL0013		Aluminum	Φ6.8*2.7mm	set
  JYL0020	Mettler of Switzerland	Aluminum pingdi	Φ6*1.7mm	set
  JYL0021		Aluminum dingwei	Φ6*1.7mm	set
  JYL0074		100ul	Φ6*4mm	set
  JYL0030	Birkin Elmer (PE)	Aluminum	Φ6.65*1.7mm	set
  JYL0031		Aluminum	Φ6.2*1.3mm	set
  JYL0040	Germany Naichi	Aluminum	Φ8*2.1mm	set
  JYL0041	Seiko Japan	Aluminum	Φ5.2*2.5mm	set
  JYL0051		Aluminum	Φ6.8*1.5mm	set
  JYL0060	SHIMADZU Japan	Aluminum	Φ6*1.7mm	set
  JYL0061		Aluminum	Φ6*2.5mm	set
  JYL0070	Other	Aluminum	Φ5*4mm	set
  JYL0071		Aluminum	Φ6.7*4mm	set
  JYL0072		Saito Ram Aluminum	Φ6.7*3mm	set
  JYL0073	Stainless steel	Stainless steel	Φ7.4*2.4mm	set
  Other specifications, drawings or sample custom processing, price and MOQ negotiable.
  Thermal analysis of alumina crucible
  Art.No.	Model	Category	Size Φmm	unit 100PC/set
  JYY0080	American TA	Alumina	Φ6.5*4mm	set
  JYY0081	Mettler of Switzerland	Alumina	Φ6*4.5mm	set
  JYY0082	SHIMADZU Japan	Alumina	Φ6*3mm	set
  JYY0083	Birkin Elmer (PE)	Alumina	Φ5*4mm	set
  JYY0084	Germany Naichi	Alumina	Φ6.7*4mm	set
  JYY0085		Alumina	Φ6.7*7.1mm	set
  JYY0086		Alumina	Φ8*16mm	set
  JYY0087		Alumina	Φ8*23mm	set
  JYY0088	Seiko Japan	Alumina	Φ5*4mm	set
  JYY0089	hanging basket American TA	Alumina	H11.6	set
  JYY0090	hanging basket American TA	Alumina	H16.6	set
  Other specifications, drawings or sample custom processing, price and MOQ negotiable.

Company description Shanghai Jing Yi Chemical Materials Co Ltd is a thermal analysis instrument, thermal analysis materials and precision die manufacturing and R & D based professional manufacturer engaged in a professional, the company has introduced Taiwan ultra precision grinding machine, wire processing equipment, to ensure the high precision of the product quality. In addition, the company has a leading professional technology and core operating team in the precision abrasive machining industry, providing a strong backup protection for product development and production. Our production of DSC differential scanning calorimetry, SDTA differential thermal analyzer, TGA thermogravimetric analyzer and other special thermal analyzer, aluminum, stainless steel and aluminum crucibles, and minimum wall thickness can reach 0.1 ~ 0.4mm; for the German Lindsays, American PE, American TA (former DuPont), tebau NETZSCH. Swiss company Mettler, France Setaram SETARAM, Japan SHIMADZU Shimadzu, Japan Rigaku, Seiko SII, Brook AXS, and provide to sample processing customized.
