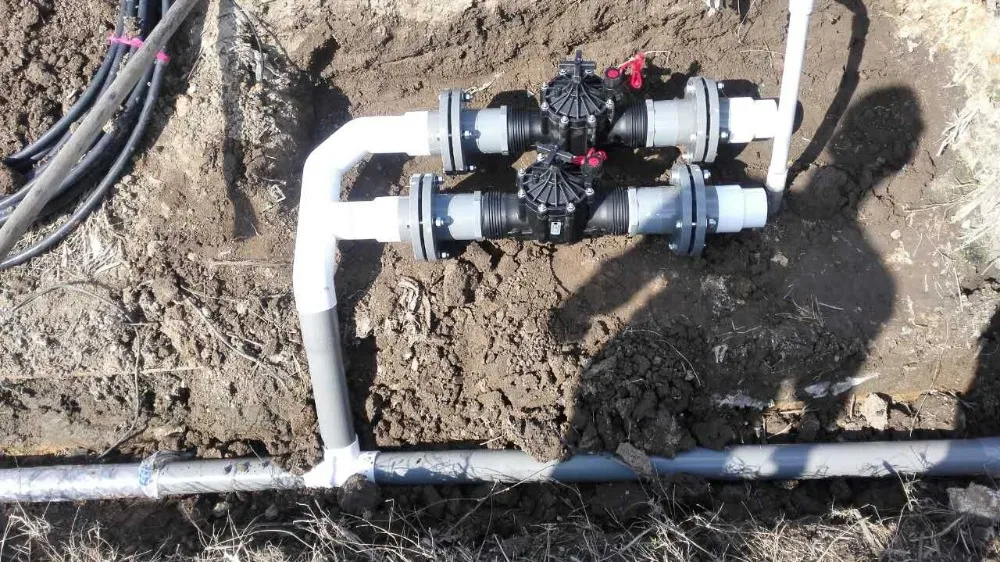

300PH-DC solenoid valve (3-inch) Product Application
Solenoid valve in accordance with the commercial standard design 300PH products, durable, high performance, can meet a variety of system environments.
Product Features
Model: 300PH-DC
Size: 3 inches
Maximum working pressure: 1400KPa,
Manual internal and external drainage function
Flow control for accurate flow regulation, and switching valve
Body glass fiber reinforced nylon, high temperature
Excellent performance nylon reinforcing rubber diaphragm member
Built-in bolts, nuts easy installation
Brass flow adjustment lever
There are slow-off function to prevent water hammer damage the system.
Turn the solenoid can be achieved manually open and close within the drain.
Double filter to prevent clogging solenoid coils.
Closed solenoid coil, core spring as a whole.
Optional DC head
Pressure regulator
Electric or manual operation
Downstream pressure range :35-700KPa or 35-210KPa
Pressure difference between the upstream and downstream pressure should be maintained at 70KPa
Performance parameters:
Flow range :1.14-72m ³
Pressure range :70-1400KPa
VALVE COIL / ELECTRICAL
The valve coil is epoxy encapsulated and is water resistant
The valve opens when it receives a 50 millisecond (ms) pulse with normal polarity (“positive” connected to red wire and “negative” connected to black wire).
The valve closes when it receives a 50 ms pulse with reverse polarity (“positive” connected to black wire and “negative” connected to red wire).
NOTE: The length of the pulse is not critical as long as it is at least 50 ms long.
Coil / Electrical
· Design voltage: 6-Volt DC
· Amperage draw: 500mA at 6-volts
· Max voltage: 9v-20vDC
· Min. 50 ms pulse opens valve
· Min. 50 ms reverse pulse closes
