PheumaticLiquid filler (10-1000ml)+new arrive +pneumatic+free shipping+stainless stee

In order to provide the best suitable machine for you , When place an order ,

please enclose the answers of following question and your email ID carefully.

1)please tell us your filling range(dose)

Such as 50ml, 100ml,300ml,500ml,1000ml,5000ml

2)please describe your product in detail. Is it liquid or paste ? What is the viscosity?

Does it have a good fluidity?

You can also make a example ,like water ,shower gel,shampoo ,toothpaste,detergent ,

cosmetic and so on.

3) provid all of inner diameter size of your vessel mouth (bottleneck)

If have more query , please information to me , I will revert to you ASAP

4) it is better , if you attached your email ID, so I can provide more information with

email

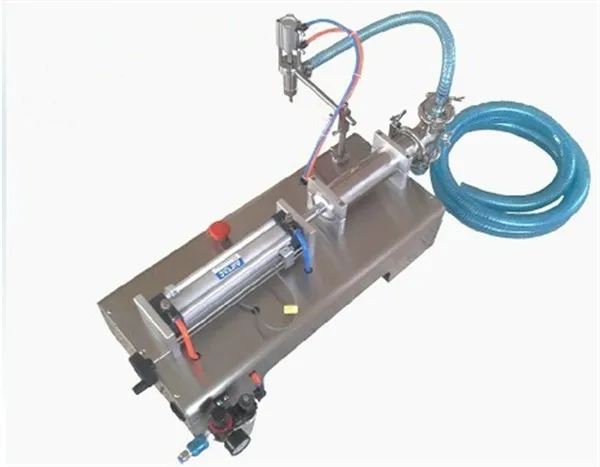

Principle

Piston Fillers measure and dispense free flowing products – such as thin and dense liquids and paste into a container. Each machine is equipped with

one or more volumetric pistons. Each filling cycle consists of an intake stroke, where the product

is withdrawn from the hopper or vessel by tube and taken into the product cylinder. The down

stroke commences as soon as the product cylinder has reached its predetermined fill level. The

piston pushes the product out of the cylinder and into the container.

Application

Widely used by industries in the Food & Beverage, Cosmetics, Personal

Care, Agricultural, Animal Care, Pharmaceutical, and Chemical fields

.And it is an ideal device for adhesive fluid filling.

Features:

· Approximate Speed: 10-20 pcs/min (depending on operator speed, product density, draw length, a fill speed, among others)

· Suitable to fill low to high-density liquids (0 – 10,000 cps)

· All Parts in Contact with Product are Food Grade (SS 304/316)

· Stainless Steel Construction

· Rugged Rotary Valve System Design

· Pneumatic Operation

· Silica gel O-ring System(cam bear 200 Celsius degree)

· Piston Feed Speed Adjustment

· No-drip Option Included and Installed

· Extremely Accurate (+/- 1%)

· Extremely Easy to Clean and Maintain

· Sanitary Stainless Steel Quick Disconnect Fittings

· Extremely Easy to Operate

· Quick Connect/Disconnect Pneumatic Fittings.

Control Panel:

o Semi Auto/Continuous Operation Selector Switch

o Air Pressure Gauge

o Air Intake Pressure Adjustment

o Piston Volume Adjust

Technical Data:

Accessory :

Air Consumption: 3-5KG

Includes Pedal

Includes Parts tools

Wearing parts:Silica gel O-ring System(when delivery, I will prepared enough for you use in one year. Customer can buy in the future in their country)

Warranty:one year
