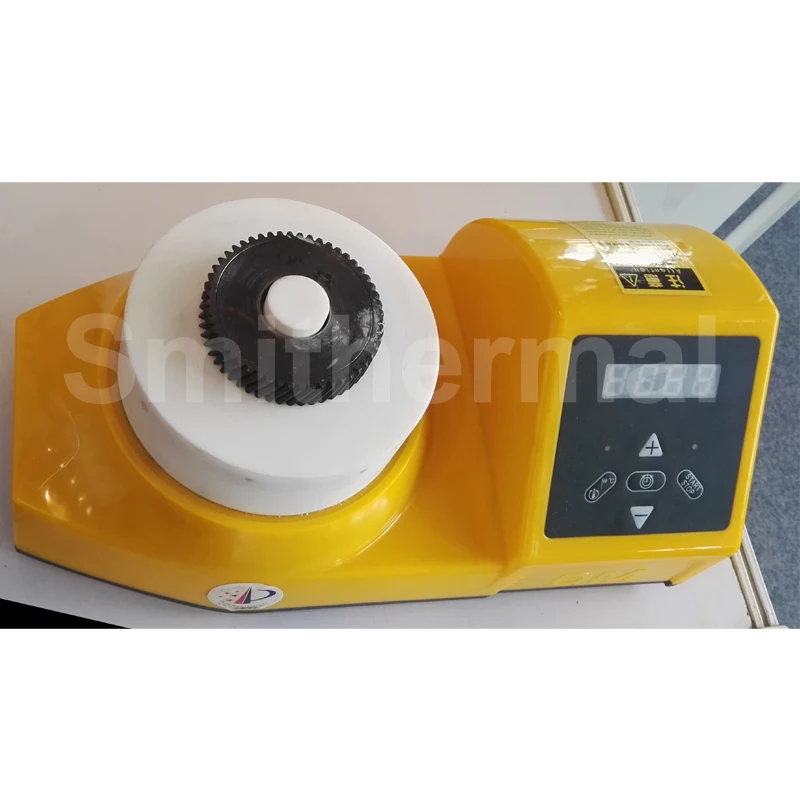

DCL-G Inductio heater for gear heating shrink and fitting
The Specification
Model |
DCL-T |
Electric power |
500-1000 W |
Voltage |
AC 220-240V/50HZ/60HZ |
Auto Adjustment |
50% -100% |
Electric current |
2.3-4.5A (Auto) |
Temperature Scope |
0-180 Degree C |
Time Scope |
0-99”59min |
Max Outside Diameter |
140 mm |
Inner Diameter |
20-120 mm |
Max Bearing Weight |
15 Kg |
RESIDUAL MAGNATIC |
Less than 2A/c |
INDUCTION HEATED HEAD SIZE |
Dia177x200xdia19mm |
Dimension/Net Weight |
400x210x300 mm/ 3 KG |
DEMANGNETIZATION |
AUTO |
COILS Cooling Method |
FORCE-AIR COOLING |
CONTROL PANEL |
DIGITAL DISPLAY |
OUT SHELL MATERIAL |
ABS Composite material |
TIPS:
Tallest temperature heating for cone bearing heater: 180 Degree C.
Accessories
Customized Temperature sensor K type Probe for bearing heater device: 1 piece
RESISTANT GLOVES: 1 Pair
220V Standard Plug
Bearing size reference.
The operating procedures
1) Connect the power (220V) and instrument lights on.
2) Instructions in accordance with the instrument temperature, pressor”Up” and “down”Set the heating to the desired temperature,Then Press”START”to Start,press”STOP”to stop.
3) Indicated by the instrument time,press “Up” or” Down” Set the heating time required,press the “START”, and start the heating. Press the “STOP” to stop.
4) According to the work piece diameter select heating yoke, the work piece is heated sleeve on the yoke (or set the pole), the yoke on the transformer two pillars end face and pressed activities of yoke. (Note: in the column end face of the to wipe butter.)
5) Sensor sucked into the work piece, press the “START”, and start the heating. Press the “STOP” to stop.
6) When the set heating temperature (time) reaches the set value, the machine automatically stops working.
7) Remove the work piece after the end of the installation.
Package: Wooden box.
Shipping Term: DHL, TNT, preference.
Payment Term: Paypal, Western Union, Escow T/T ok.
More question, you can contact me directly by trademanager.
