RAYKUBE Door Access Control System Kit 180KG/280KG Electric Magnetic Lock + Biometric Fingerprint Reader RFID Password Keypad

RAYKUBE Door Access Control System Kit 180KG/280KG Electric Magnetic Lock + Metal Touch FRID Keypad + Exit Button +ID Keyfobs

About Shipping:Please note,The precondition for DHL Free Shipping is your address is not the Remote Area.

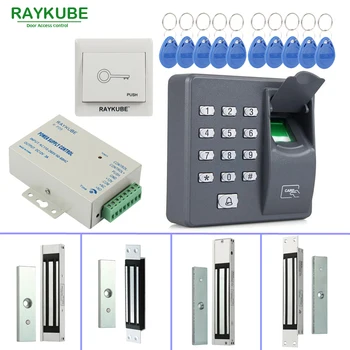

This item is a full kit of Door Access Control System.You can see five different options kit.The only difference is the Locks(180kg/280kg/waterproof and inset type) that suit for different doors.Please choose the items according to your door type.If any query please feel free to contact us.

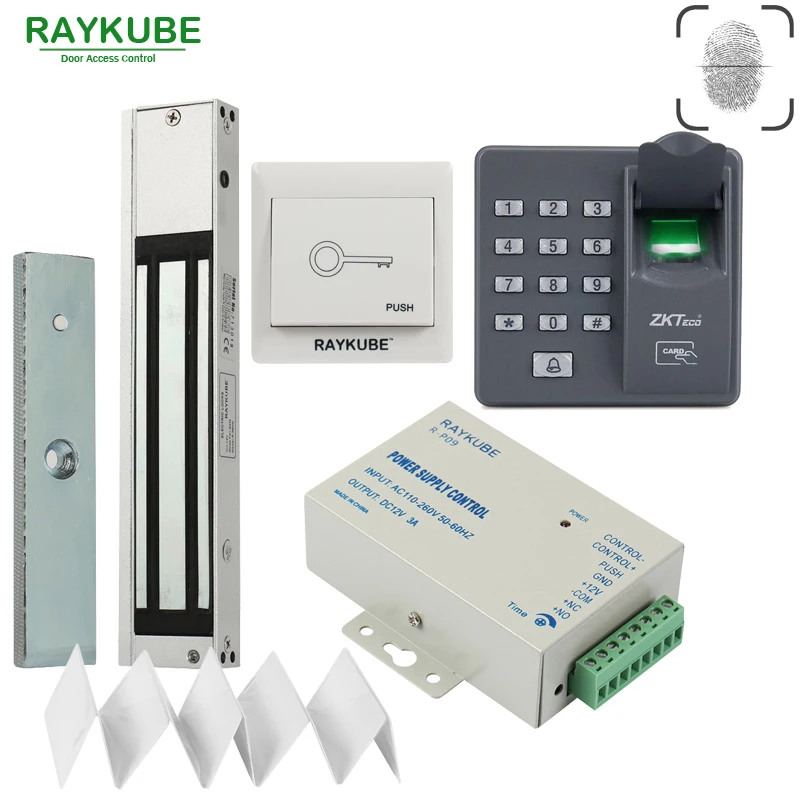

Item Include:

• 1 x R-FX6 Fingerprint Reader
• 1 x Elcetric Magnetic Lock(180kg/280kg)
• 1 x 12V 3A Power Supply
• 1 x Exit Button
• 10 x ID Keyfobs
• .
• .
• .(There are more accessories for the Access Control System in our Speciality Store)

Features of Biometric Fingerprint Access Control:

• Reliable,durable&highlyaccurate optical sensor
• Upto 500 Card Capacity
• Upto 500 Fingerprint Capacity
• Lessthan 1 second user recognition
• Reads Fingerprint and/or Password and/or card
• Password Capacity up to 8 groups
• Integrated 125kHz RFID proximity reader
• Small Rugged elegant design
• Audio indicationsfor acceptance and rejection of valid/invalid transactions
• 3rd Party Electric Lock,Alarm,Door Sensor, Exit Button and Doorbe
• Standard ID Card while MF card as optional feature

Products Features:

• Collinear Load Test 180kg 300pounds /280kg,600pounds.
• The Standard Voltage is 12VDC when Finished.
• MOV Provides Reverse Current Protection.
• Anti-Residual Magnetism Designed.
• High Strength Material,Anodized Aluminum Housing.
• Design without Mechanical Failure.
• Increase the holding Force,Dual Insulative Housing.

Products Specifications:

• Holding Force: 180kg(300Lbs)/280kg(600Lbs)
• Input Voltage: 12VDC
• Current: 12V/120mA
• Suitable: Wooden door , Glass door ,Metal door , Fireproof door
• Surface Temp: ≤+20℃
• Operating Temp: -10~+55℃(14-131F)
• Humidity: 0~90%(non-condensing)
• Cover Finish: Anodized aluminum
• Lock Finish: Zinc
• Armature Plate Finish: Zinc

Products Features:

• 1.It controls electric lock directly.
• 2.Can reduce the load of access controller, save wiring to reduc the hidden trouble
• 3.Set NC / NO outputs, can control various types of electric locks
• 4.Based delay control circuit, lock time can be in 0-15 seconds
• 5.Automatic protection function, unexpected situations such as
• 6.when the power supply short-circuit occurs, the power may be
• 7.temporarily disconnected or the fuse auto insurance line off
• 8.Operative device: E/M Lock, Access Controller, Exit Push Button

Products Specifications:

• 1.AC input: Standard AC100V-240V 50-60HZ
• 2.DC output: Stabilivolt DC12V/ 3 A
• 3.Package Dimensions: 117 x 68 x 32mm

Products Features:

• Here is a Exit Button for Access control use
• Maximun Power Rating: 12V DC 3A-5A output
• Performance Testing: 1000000 times aging test
• Suitable For: Wooden Door, Metal Door, Glass Door,Fireproof Door, etc

Products Specification:

• Faceplate Dimension : 88x88mm
• Opening device: Normal Open
• Maximun Power Rating: 3A/36VDC
• Material: Hard Plastic

• 1.125KHZ proximity RFID card
• 2.Operation Frequency: 125KHz
• 3.Each card has been pre-programmed with an uniqe ID, which is printed on the back.
• 4.Detecting distance: 3-10cm
• 5.Size: 55mm x 86mm x 0.8mm
