Supereyes Waterproof Digital Endoscope Microscope Otoscope 7mm 200X Handheld USB Endoscope Borescope Camera Video Medical

USD 76.92/pieceUSD 89.74/pieceUSD 51.28/pieceUSD 130.00/pieceUSD 124.63/pieceUSD 130.00/pieceUSD 110.00/pieceUSD 108.69/piece

Supereyes Waterproof Endoscope Otoscope 7mm 200X Handheld USB Digital Endoscope Borescope Camera Video Medical Microscope Magnifying Glass

Unique Features

• Slim microscope body compared with traditional microscopes or other brand or non-branded USB microscopes.
• Convenience wire controlled LED light and snapshot.
• Eco-friendly alloy material with Rhos certification, provides strong and light microcope body.
• Supereyes Software has exlusive measurement function; it is fully compatible with Win 8 32/64 bit

Applications:

• Health: hair, skin
• Anti-counterfeit: false label, tiny print, forged money, security indentification
• Quality control: material, design, repair, metal, surface, printing, PCB
• Education: biological sample, living creature observation, auxiliary reading
• Forensic: finger print, trace elements
• And more…..

Specifications

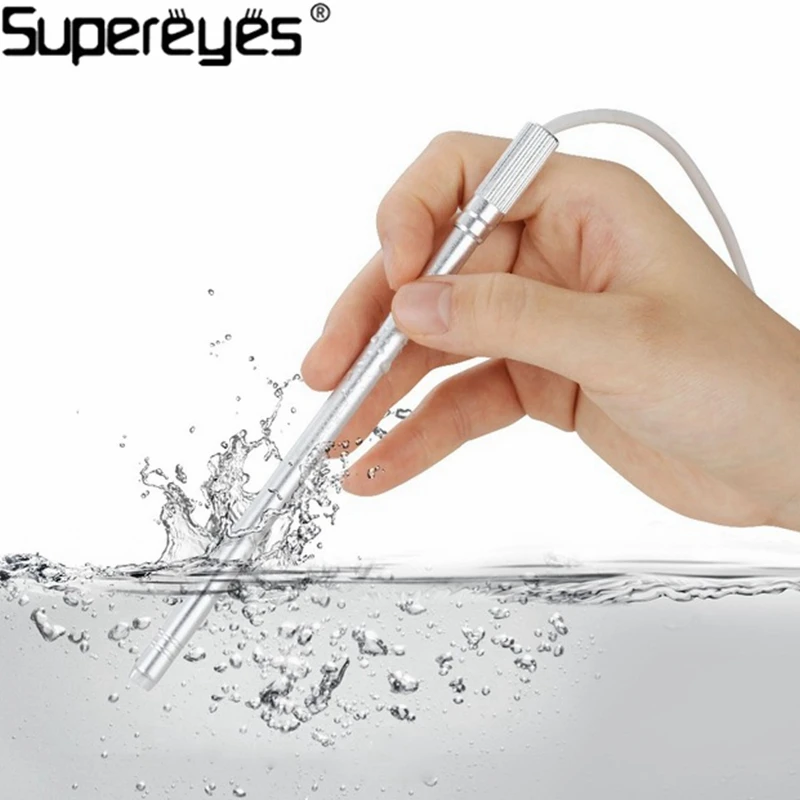

• Model: Y002, ONLY 7mm diameter, unique Waterproof (IP 67), delicately made! Worth every penny you spend!
• Magnification: 1 ~ 200 times (continuous zoom capability)
• Sensor: 2.0MP (true hardware)
• Operating System: Windows XP SP2 or above, including Win 8 32/64 bit, Mac OS × 10.5 or above, Linux
• Object distance: 0 mm ~ infinity
• Focus type: manual focus
• Interface USB 2.0
• Max Size: Ø7 mm × 123 mm
• Light Sources: LED illumination (adjustable by control wheel)
• OSD language: English, Chinese, German, Japanese
• Software: Supereyes Software with measurement and calibration function
• For Mac, please use Photo Booth, FaceTime or QuickTime
• For Linux, please use web camera software to open it
• Snapshot by software/hardware
• Still image capture resolution: max 1600 X 1200
• Photo Format: JPEG
• Video: High compression, 11 hours long
• Video Capture Resolution: max 1600 X 1200
• Video Format: WMV
• Display Speed: Maximum 30 f/s

Package and Accessory:

• Package Size: 18 cm(L) × 9 cm(W) × 3 cm(H)
• Gross weight: 250 g
• Net weight: 80 g
• Including: 1 X Microscope, 1 X User Manual, 1 X CD

Please note :

The OTG line is not include ,and not all phones support the following function

If you want to used on the phone ,please contact the customer before you make an order ,thank you !

How to use, a quick guide from Supereyes

• For Mac and Linux, please plug the device into your computer, and then use corresponding software to open it.

• For Windows XP SP 2 and above, including Win 8 32/64 bit, no driver needed, please directly install the software on the mini CD. If you have any problems regarding the mini CD, please download the software on www.supereyes.cc, or contact us.
  a. After software installation, plug the device into PC, open software, select “Preview”, then you should be able to see the device working. For more detail information about measurement, please see the User Manual.
  b. To achieve maximum magnification, please put the microscope on top of the object, rotate the tail of the microscope to change focus. Turn on the LED lights if needed. The zoom capability would decrease as the distance between microscope and objects increase.
  c. You might find that the display speed of 5 MP is slow, which depends on your computer’s specifications and USB 2.0’s transfer rates. We recommend you to use 3 MP for previewing and 5 MP for taking photo, or using the latest Supereyes software v3.54.

How to calculate a digital microscope’s magnification:

Digital microscope is different with traditional optical microscope. The magnification of a digital microscope includes both optical and digital magnification. A good way to test the real magnification is using the equations listed below. In this equation, we take Supereyes A005+/B008 for example.

• A005+/B008 has 5 MP sensor. If you want to calculate model B003+/A005, please change 5 MP to 3 MP.
• 17″ is the most popular monitor in the market. All Supereyes products’ specifications are calculated based on 17″ monitor.
• 2 is 2 mm. Usually, if you use the maximum power/magnification of Supereyes products, the maximum real length that could fully occupied the monitor is 2 mm.
• If a microscope has a 0.3 MP sensor, it is unlikely that it has real 500X power. So don’t be cheated by some advertisement!

Supereyes Software

Supereyes Software is compatible with Win XP SP2 or above, including Win 8 32/64 bit. It has anti-shake, 11-hours recording, measurement (including length, angle, arc and so on) and adding functional.

How to choose your microscope?

1. Which RESOLUTION fits your purposes best?
   There are some sample photos taken by Supereyes microscope on our product list, which would help you to make decision. If you need more photos, please send message to us.
2. AUTO FOCUS or MANUAL FOCUS?
   Manual focus microscopes are cheaper and smaller.
   Auto focus microscopes save your time. There are three different types of auto-focus Supereyes microscope:
   A005/A005+. Firstly use manual focus to find the approximately focal point, and then the fine auto-focus would work for you to find the accurate focal point. The fine auto-focus’s working range is about 0 ~ 10mm. If the distance change too much, manual focus is needed. The working distance is 0 ~ ? mm.
   A004/A004+, touch-point auto-focus, the most fast auto-focus. As long as the object touching or very close to the pointed metal head of A004/A004, the microscope would find the accurate focal point. The working distance is 0 ~ 3mm. To change zoom, please rotate the tail of the device.
   A006, ultimate auto-focus, with maximum 50X magnification. Totally auto focus, no manual focus needed. The zoom power depends on the distance between microscope and object: move close for zoom in, move away for zoom out.
3. In some cases, lens diameter is more important. Please choose the microscope based on your own unique requirement. The tips listed above are only for references.
