UDSJ-320 salt crushing machine/pepper milling machine/chili grinder

UDSJ-320 salt crushing machine/pepper milling machine/chili grinder

Introduction

Grinder (steel mill) is widely used in feed, pharmaceutical, chemical, food, and other non-metallic mineral industries, for crushing brittle material drying. The machine structure is simple, sturdy, stable operation, the pulverized material quickly and evenly, with good results. This machine adopts high quality stainless steel material, inside the enclosure by precision machined so as to achieve a smooth surface, easy to clean effect, changed the ordinary pulverizer rough wall, easy to plot powder, hard to clean up the phenomenon.

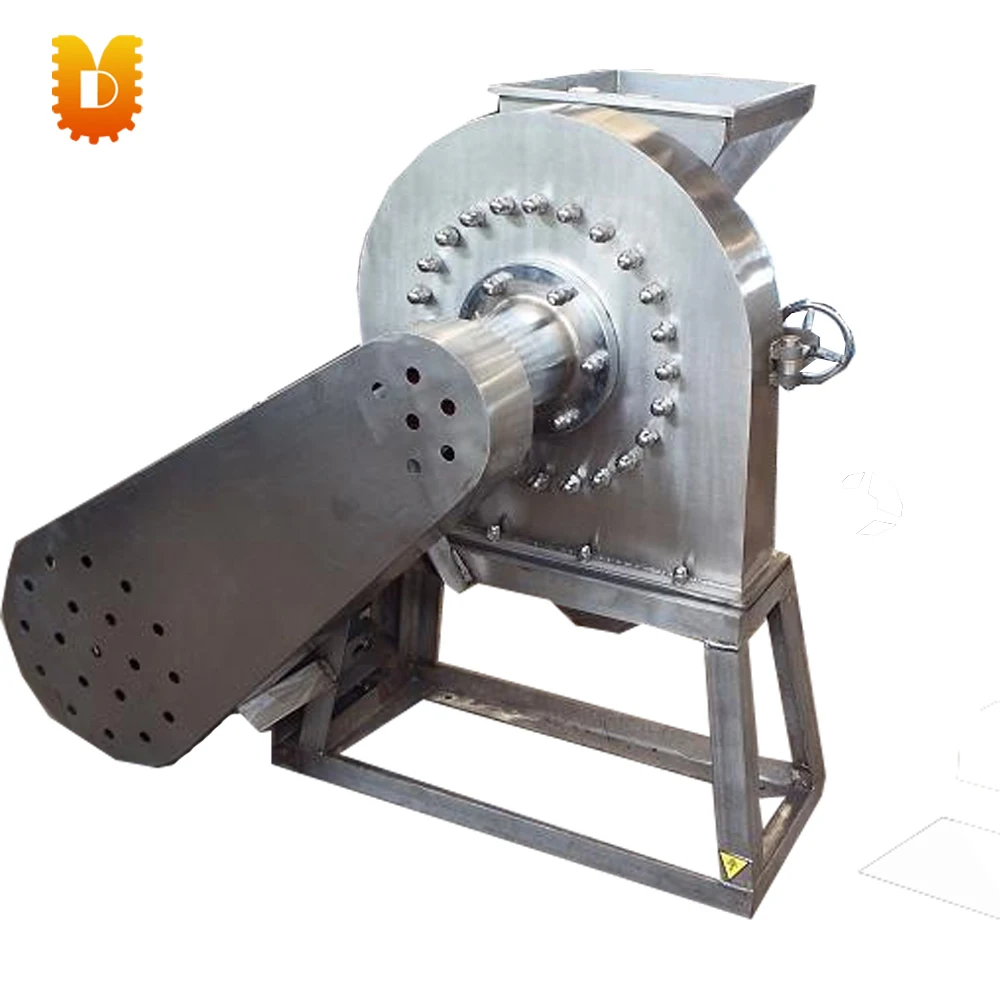

Products show

Features

1. Simple structure, easy assembly and disassembly grinding chamber, easy to clean.

2. Smooth operation, low noise, vibration small.

3. Simple operation, to replace the screen can control the size of particle size.

Structure and working principle

The machine consists of a hopper, body, rotor disk, screen films, stator disc, a gate and other components. The machine is equipped with the spindle rotor disk fitted with steel teeth and hammer on the rotor disk, the grinding chamber cover with fixed steel teeth, steel teeth and hammer on the rotor disk and the fixed steel teeth are mutually staggered. When the spindle at high speed, the rotor disk also running, the material is thrown into the gap between the head ornament, under the combined effect of the mutual impact between them and the tooth material or materials, shear, friction, etc., was crushed. Material crushed driven airflow along the outer edge of the rotor, to withstand continuous hammer, tooth plate, sieve blow, collision, was quickly crushed and rubbed.

The machine is equipped with a screen, the screen can be replaced according to customer requirements, when the material is pulverized to less than the diameter of the mesh, the rotor due to the centrifugal force from the fast sieve through the sieve, falling below the spout, crude continued to crush material. General to go through the material after crushing cotton bags to collect the material crushed in the collection bag from the air bag out of tiny perforations, fines will not be discharged, which play no waste, no pollution effects. Particle size control is realized by a switch to a different number of screens.

Technical parameters

Products show
