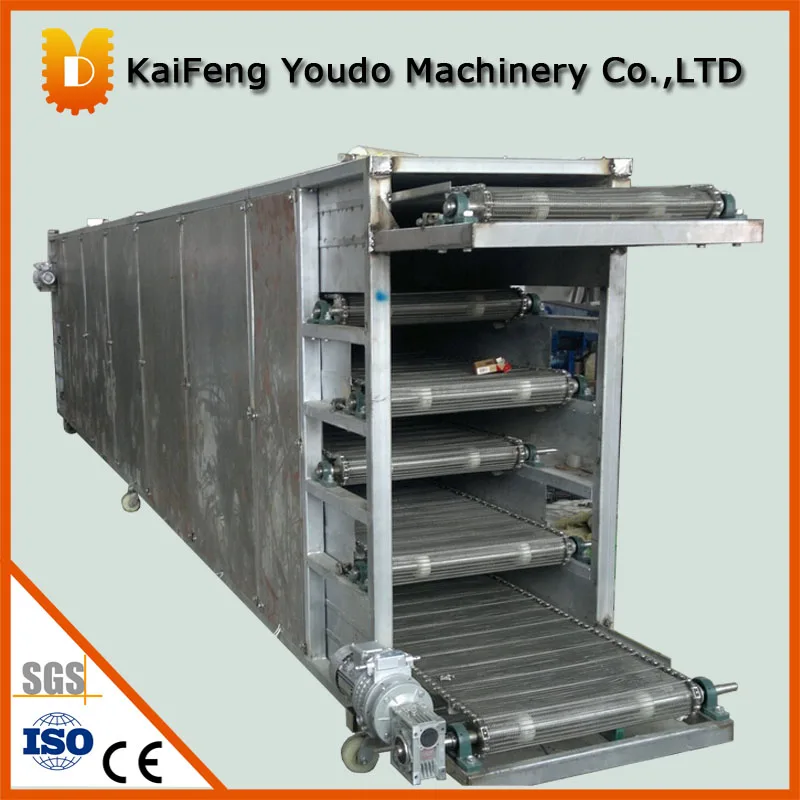

UDWD-5-7 cashew nut drying machine/belt dryer

UDWD-5-7 cashew nut drying machine/belt dryer

Features:
1, dehydrated vegetable, granule feed stuff, chicken essence, coconut, organic pigment, synthetic rubber, acrylic fiber, medicines, medicinal materials, small wood products, plastic products, aging and solidifying of electronic components, etc.
2, this series of drying machine has fast drying speed, high evaporation strength, good product quality advantages.
Mesh belt dryer is composed of electric heating, steam heating, hot air heating heating of batch and continuous production of steel net is used as transmission carrier material for continuous drying drying equipment.Mainly to press the ball through finished product conveyor directly conveying the flat conveyor, scraper will be finished at the top of the ball through the flat conveyor uniformly distributed on the dryer, increase the permeability of the ball, the drying effect.
Principle is the material of spread in the steel mesh belt, the driving device drag moving back and forth inside the drying machine, hot air in the materials passing through, the water vapor from the eduction in the platoon is wet hole, so as to achieve the purpose of drying.

Specifications:
1. Dimensions: 8500x1420x2200mm (Slope 3500x1200x1980mm)
2. A special cabinet control; frequency control, adjustable speed; temperature control table, temperature adjustable.
3. Material: stainless steel insulation board, the middle of cotton insulation, the thickness of 1.2mm.
4. Belt: width of 1 meter, with two layers of net bag, all stainless steel; the belt mesh size is 2mm, total of 7 layer; Feeding mouth with gauze to prevent leakage of material, the bottom of the drawer, recycling part of the leakage material.
5. Frame: box iron.
6. Heating tube:Total of 3 layers, heating tube 120pcs, each power is 0.5kw.
7. Power: The total installed power: 62.2kw, the actual power consumption 45kw.

Technical parameters:
